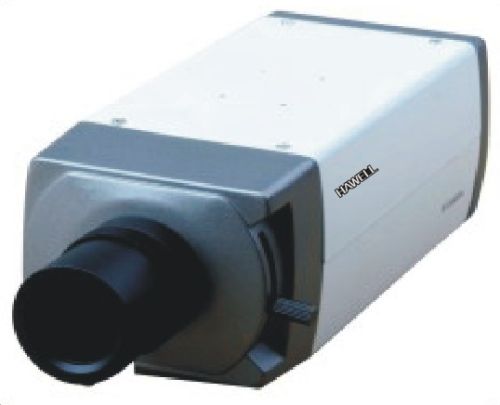

2Megapixel H.264 IP Box Camera

Designed with 2 mega COMS sensor and high-performance multimedia processor；based on embeded Linux OS，our IP cameras support H.264 Main Profile video coding and G.726/G.711 audio coding，with megapixel video resolution，support SD card snapshot pictures storage，support RTSP protocol. This kind of IP camera is ideal solution for security & surveillance field, including office room, super market , highway , airport and so on.
Main features:
Support H.264 Main Profile video coding
Sensor: High sensitivity Micron megapixel COMS
Support HDTV720P/130 megapixel resolution
Support Dual video stream synchronous transmission
Support Mobile monitoring
Support EVDO/WCDMA/TD-SCDMA 3G network(Optional)
Support WIFI/802．11b/g wireless network(Optional)
Build-in SD card slot，support up to 64G SD card，can save pictures and clips in SD card, support pre-recording for alarm-recording mode.
Support two-way voice intercom
Support sending email, attaching picture
Support DHCP
Support DDNS
Support Motion-Detection(multiple regions and sensitivity can be set) and sensor alarm
Support remote alarm linkage,multiple alarm time can be set
Build-in RS485/RS232 port and multiple PTZ protocol
Support recording and snapshot in PC through live video
Support up to 10 users browsing at the same time
Clock time keep working after power failure，support NTP
Support abnormal automaticly recovery，Network can be automatically re-connected after interruption
Support multiple network protocol,such as TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP and so on
Only 1 network port is used for IE Browsing,stream transmiting and command access, convenient for router setting
Support UPNP
Provide Client software for PC, to view and control multiple site
Can provide CMS (charge needed）
Parameter:
OS Embeded Linux
Video Codec H.264 main profile level 3
Audio Codec G.726/G.711/AMR
Image Sensor 1/3 2 megapixel progressive scan CMOS
Video Performance Brightness,contrast,saturation can be adjusted
COMS Performance Automatic white balance,automatic gain control,automatic light compensation
Min Illumination 1Lux
Video Resolution Main stream:1280x960 1280x720
Sub stream:640x480 320x240
Video Frame Rate Main stream:1~30fps
Sub stream:1~30fps
Video Compression 32Kbits/S-4Mbits/S
Audio Input 1ch Line/MIC
Audio Output 1ch Line Out
Alarm I/O 1ch Input,1ch Output,120VAC 1A/24VDC 1A
Motion Detection At most 4 respective regions.
PTZ Interface 1ch RS485
SD Card At most 32G, recording and snapshot
Network Protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP and so on
Network Interface 10Base-T/100Base-TX Ethernet interface;
WCDMA/EVDO/TD-SCDMA (Optional)
Input Power 12V DC 3A
Power consumption 6W
Working temperature -10 ~ +65 degree
Working Humidity 10 ~ 85%RH
Dimensions(W×D×H) 132x52x64mm
Weight 650g
