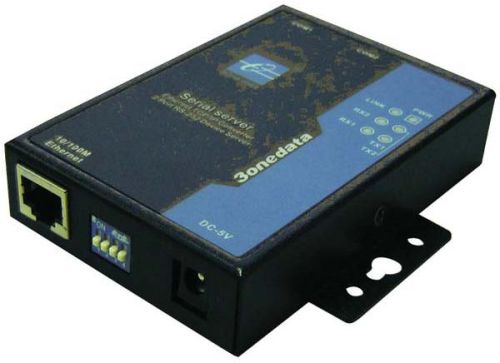

2port Rs232 To Ethernet Converter

We are offering ethernet converter.
Specification
ethernet port
standard: 10base-t, 100base-tx
protocol: support tcp, udp, apr, icmp and dhcp
signal: rx+, rx-, tx+, tx-
speed: 10100mbps
working: full-duplex and half duplex
working mode: support tcp server and client
transfer distance: 100m
connector: rj45
rs232 port
rs232 port number: 2
rs-232 signal: dcd, rxd, txd, dtr, gnd, dsr, rts, cts
parity bit: none, even, odd, space, mark
data bit; 5bit,6bit,7bit,8bit
stop bit: 1bit,1.5bit,2bit
band rate: 300bpsã¯â½ï¿½115200bps
loading: point to point
transfer distance: no more than 15m
connector: rj45
protection: class 3 static
led indicator
power (pwr)
ethernet port connect statue (link)
rs232 port data indicator: tx, rx
power requirements
input voltage: 5vdcã�â±5%
no-load consumption (low consumption):0.56 5w
full-load consumption (low consumption): 0.905w
no-load consumption (high performance): 0.91w
full-load consumption (high performance): 1.215w
environment limits
working temperature: -40~85ã¢ï¿½ï¿½
storage temperature: -40~85ã¢ï¿½ï¿½
relative humidity: 5%~95%ã¯â¼ï¿½non-condensingã¯â¼ï¿½
mechanical
shell: ip30 protection, metal shell
installation: wall mounting
weight: 227g
size (l�w�h): 100mm�69mm�22mm
standard
emi: en 55022 class a, fcc part 15 subpart b class a
ems: en 55024,
en 61000-4-2 (esd) level 3,
en 61000-4-3 (rs) level 3,
en 61000-4-4 (eft) level 4,
en 61000-4-5 (surge) level 3,
en 61000-4-6 (cs) level 3,
en 61000-4-8,
en 61000-4-11
shock: iec 60068-2-27
free fall: iec 60068-2-32
vibration: iec 60068-2-6
warranty
warranty time: 5years
certificates
ce, fcc, rohs, ul508(pending)
