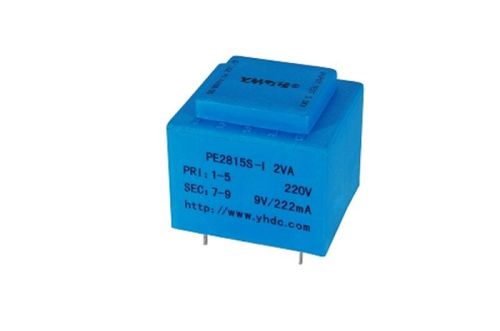

2VA 220V/9V PCB Welding Encapsulated Isolation Transformer

PE2815S-I EI silicon steel sheet PCB welding transformer Power 2VA 220V9V Manufacturer
Characteristics:
1.Vacuum encapsulated,100℃ six hours high temperature aging,service life 20 years ,high dielectric strength.
2.High quality silicon steel sheet， Low temperature rise,High efficiency.
3.PBT project plastic, environmental protection,anti flaming, 120 degrees of deformation
4.Reasonable structure,convenient installation, low noise,strong earthquake,airtight waterproof ,moisture
proof.
5.Ambient environment temperature:-30 ℃~+70 ℃
6.Against electric shock:seven times the rated input voltage.
Technical parameters:
Model：PE2815S-I
Primary work voltage: 220V
Primary voltage range: ±10%
Output voltage:9V
Power: 2VA
No-load loss: ≤0.4W
Voltage: ≤33%
Work frequency: 5060 Hz
Temperature rise: ≤18℃
Dielectric strength:3.5kV
Fire resistance: UL94-V0
Mounting type: PCB
Insulation grade: B
Weight: 85g
Please note the product parameters in order remarks,thank you.
Company Profile:
DechangElectronicCo.,Ltd. was founded in 1992. We mainly produce power transformer, currrent transformer, hall effect sensor, trigger transformer and common mode chock.
Our factory covers over 12,000 square meters, including 4 workshops. We have more than 100 sets automatic wire winding machine. So we can achieve mass production and short time delivery.
Our products have got CE, ROHS, CQC certificate. The quality is guaranteed. At the same time, we promise low price and regular supply.
Shipping:
According to your location, we will provide you with the best shipping cost and shipping method.
Pls contact me to know more about shipping information.
