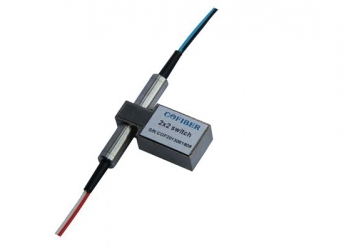

2x2 Mechanical PM FIber Optical Switch, Brand Name : ZG

Can work in extreme temperatures from -40~80�.Passed antishake tests,drop from 1 meter height can work as usual.
Features:
high extinction ratio;
low insertion loss;
high channel isolation;
highly stable and reliable;
epoxy-free optical path
Applications:
optical signal routing;
network test systems;
instrumentation
Performance Specifications:
parameters specification
operating wavelength(nm) 1570nm
insertioni loss(dB) 1.5
wavelength dependent loss(dB) 0.25
extinction ratio(dB) 15
channel cross talk(dB) 50
repeatability(dB) ±0.10
return loss(dB) �50
switching speed(ms) �10(typ.6)
drive voltage(v) 5
power handling (mWO 500
durability(cycles) 10million
operating temperature(ºC) 0~+70
storage temperature(ºC) -40~+85
fiber type pandaPMfiber
dimension(LxWxH) 27.2x12.8x7.5
Electronic pins structure
Non-latching
optical path condition
PIN1 PIN10 PIN3-2 PIN3-4 PIN8-9 PIN8-7
1-3;2-4 NA NA CLOSE OPEN CLOSE OPEN
1-4;2-3 GND +5v OPEN CLOSE OPEN CLOSE
Latching
optical path circuit driver condition
PIN1 PIN5 PIN10 PIN6 PIN3-2 PIN3-4 PIN8-9 PIN8-7
1-4;2-3 NA NA +5v GND OPEN CLOSE OPEN CLOSE
1-3;2-4 +5v GND NA NA CLOSE OPEN CLOSE OPEN
