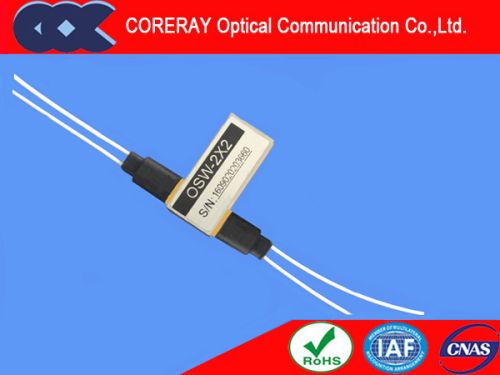

2x2 Optical Switch, Brand Name : CORERAY

We Provide:
2x2 FIBER OPTICAL SWITCH, 2x2 MECHANICAL OPTICAL SWITCH,
2x2 MEMS OPTICAL SWITCH, 2x2 SM MM OPTICAL SWITCH
2x2 MINI OPTICAL SWITCH, 2x2 MAGNETO-OPTICAL SWITCH
2X2 Optical Switch Features
2x2 Optical switch Low Insertion Loss
2x2 Optical switch Wide Wavelength Range
2x2 Optical switch Low Crosstalk
2x2 Optical switch High Stability, High Reliability
2x2 Optical switch Epoxy-free on Optical Path
2x2 Optical switch Latching and Non-latching
2x2 Optical Switch Applications
Optical Signal Switching and Routing
Optical Network Protection and Restoration
Optical Network Monitoring
Video Distribution
Instrumentation Resource Sharing
Military Communications
Parameters OSW-2x2
Fiber type nm MM SM
Testing Wavelength nm 63065078085098010641310 13101490155016251650
Insertion Loss dB Typ:1.0,Max:1.3 Typ:1.0 ,Max:1.2
Return Loss dB ≥30 ≥50
Crosstalk dB ≥35 ≥50
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power supply v 3.0 or 5.0
Lifetime Cycle ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operation Temperature ℃ -40～+85
Storage Temperature ℃ -40～+85
Weight g 16
Dimension mm (L)28×(W)12.6×(H)8.5(±0.2)
Pins
Optical Path Electric Drive Sensor Status
2X2 1 5 6 10 3-4,7-8 2-3,8-9
Latching P1-P4, P2-P3 +5V GND NA NA CLOSE OPEN
P1-P3, P2-P4 NA NA GND +5V OPEN CLOSE
Non-Latching P1-P3, P2-P4 NA NA NA NA OPEN CLOSE
P1-P4, P2-P3 +5V NA NA GND CLOSE OPEN
Electrical parameters
Voltage Current Resistor
5V Latching 4.5~5.5 36~44mA 125Ω
5V Non-Latching 4.5~5.5 26~32mA 175Ω
3V Latching 2.7~3.3 54~66mA 50Ω
3V Non-Latching 2.7~3.3 39~47mA 70Ω.
