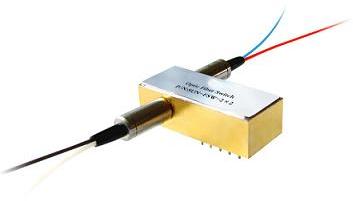

2x2 Optical Switch

We are offering 2x2 optical switch.
anfiber company supply 2x2 optical switch, as a professional optical device manufacturer , high quality and low price 2x2 optical switch in shenzhen,china
anfiber.com-2x2 optical switch, which is famous for its high performance, low insertion loss and compact dimension : (l)28.5x(w)12.5x(h)8.5(sm); (l)27.0x(w)12.6x(h)8.0(mm).it is an ideal component for oadm�oxc�system monitor and protection. With compact package, it could be easy to integrate into a high density optical communication system.
2x2 optical switch applications
configurable oadm
metropolitan area network
system monitoring
component testing
r&d in laboratory
2x2 optical switch features
low insertion loss
wide wavelength range
low crosstalk
high stability, high reliability
latching and non-latching
epoxy-free on optical path
2x2 singlemode optical switch parameters:
wavelength range nm 1260~1650
operating wavelength nm 13101490155016251650
insertion loss db typ:0.8 max:1.0
return loss db �50
crosstalk db �55
pdl db �0.05
wdl db �0.25
tdl db �0.25
repeatability db â�¤â±0.02
power supply v 3.0 or 5.0
lifetime times �107
switch time ms �8
transmission power mw �500
operating temperature � -5�+70
storage temperature � -40�+85
weight g 16
dimension mm (l)28.5ã�(w)12.6ã�(h)8.5(â±0.2mm) customization is available
2x2 multimode optical switch parameters:
wavelength range nm 670�980 1260�1650
operating wavelength nm 670785850980 13101490155016251650
insertion loss db typ:0.8 max:1.2 typ:0.8 max:1.0
return loss db �30
crosstalk db �45
pdl db �0.05
wdl db �0.25
tdl db �0.25
repeatability db â�¤â±0.02
power supply v 3.0 or 5.0
lifetime times �107
switch time ms �8
transmission power mw �500
operating temperature � -5�+70
storage temperature � -40�+85
weight g 16
dimension mm (l)27.0ã�(w)12.6ã�(h)8.0(â±0.2mm) customization is available
the above is 2x2 optical switch,manufacturer provides straightly 2x2 optical switch partial information, if you have any question for 2x2 optical switch of the price, manufacturers, model, pictures, please contact us for 2x2 optical switch of the latest information.
