2x2A Mechanical Optical Switch, Brand Name : ZG

features
wide range of wavelengths
low channel crosstalk
high stability, high reliability
unique patented technology, light
path without glue
simple control
applications
optical path switching
system monitoring
laboratory research
dynamic oadm

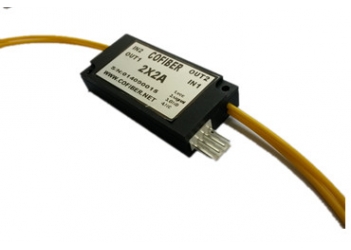

2x2A Optica Switch, which is famous for its great performance, low insertion loss and compact dimension:27.0x(w)12.6x(H)8.5. It is an ideal component for OADM,OxC, system monitor and protection. With compact package, it could be easy to integrate into a high density optical communication system
Product parameters
parameters min max unit
operating temperature range -30 75 oC
storage case temperature range -40 85 oC
relative humidity(non-condensing) - 85 %
parameter min typ max unit
Wavelength window 1510,1570 both nm
insertion loss IN1-IN2(0V) - - 1.4 dB
OUT2-OUT1(0V)
1.4 dB
IN1-OUT1(5V) - - 1.4 dB
OUT2-IN2(5V)
- 1.4 dB
switching time (90%) - 5 10 ms
switch driving voltage (Vcc) 4.5 - 6.0 V
switch signal voltage 4.5 - 5.0 V
variation in insertion loss over temperature range - - 0.4 dB
isolation - 60(accept 55) - dB
