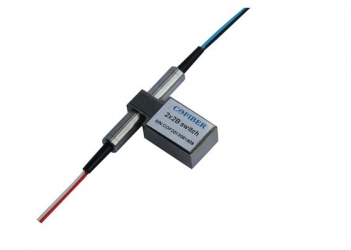

Contact SupplierWe offer micro mechanical optical switch
features
unmatched low cost
low insertion loss
high channel isolation
highly stability and reliability
epoxy-free optical path
�������
applications
intracity networks
research LABB
system monitor
dynamic configuration points into reuse
parameters:
model number 2x2B
wavelength range 1260-1650(MM) 1260-1650(SM) nm
test wavelength 13101490155016 131014901550162 nm
insertion loss 0.8 0.7 dB
return loss SM�50, MM�30 dB
cross talk SM�55, MM�35 dB
wavelength dependant loss �0.25 dB
polarization dependant loss �0.05 dB
temperature dependant loss �0.25 dB
repeatability �± 0.05 dB
operating voltage 3.0 or 5.0 V
durability >10million (cycle)
switch time bar�cross�3 cross�bar�5 ms
transmission power �500 mW
operating temperature -20~ +70 ºC
storage temperature -40~ +85 ºC
dimension (L)27.2x(W)12.8x(H)7.5 mm
