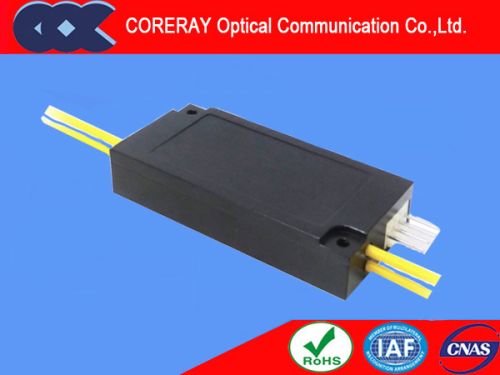

2X2BA Optical Switch

2×2ba optical switch
professional supplier of fiber optical component
◇features
low insertion loss
wide wavelength range
low crosstalk
high stability, high reliability
epoxy-free on optical path
latching and non-latching
◇ application
metropolitan area network
r&d in laboratory
system monitoring
configurable oadm
◇ performance
parameters osw-2×2ba
wavelength range nm 650～1310 1260～1670
testing wavelength nm 65078085098010641310 13101490155016251650
insertion loss db typ:1.0,max:1.2 typ:0.8,max:1.0
return loss db ≥30 ≥50
crosstalk db ≥35 ≥50
pdl db ≤0.05
wdl db ≤0.25
tdl db ≤0.25
repeatability db ≤±0.02
power supply v 3.0 or 5.0
lifetime cycle ≥107
switch time ms ≤8
transmission power mw ≤500
operation temperature ℃ -40～+85
storage temperature ℃ -40～+85
weight g 16
dimension mm (l)55×(w)26×(h)10.8(±0.2).
