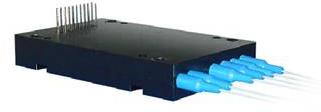

2x4 Optical Switch

We are offering 2x4 optical switch.
anfiber company supply 2x4 optical switch, as a professional optical device manufacturer , high quality and low price 2x4 optical switch in shenzhen,china.
anfiber.com-2x4 optical switch is famous for its small volume , reliable performance, simple control mode. It is an ideal component for oadm，oxc，system monitor and protection. With compact package, it could be easy to integrate into a high density optical communication system.
2x4 optical switch features
wide wavelength range
low crosstalk
high stability, high reliability
unique patent: non-glue in optical route
simple control
2x4 optical switch applications
optical route switch
system monitor
r&d in laboratory
configurable oadm
2x4 optical switch parameters
wavelength range nm 1310 or 1490 or 1550 (sm)1310 & 1490 & 1550 (sm)850 or 1310(mm)
insertion loss db typ:1.5 max:1.8 typ:1.8 max:2.0 typ:1.8 max:2.0
pdl db ≤0.05
return loss db sm≥50 mm≥30
wdl db ≤0.25
crosstalk db sm≥55 mm≥35
repeatability db ≤±0.02
drive voltage v 5.0
lifetime time ≥107
switch time ms ≤8
transmission power mw ≤500
operation temperature ℃ -20~+70
storage temperature ℃ -40~+85
dimension mm (l)95×(w)76×(h)15
the above is 2x4 optical switch,manufacturer provides straightly 2x4 optical switch partial information, if you have any question for 2x4 optical switch of the price, manufacturers, model, pictures, please contact us for2x4 optical switch of the latest information.
