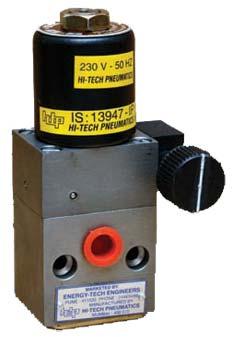

3/2 Way Pilot Operated Solenoid Valve

As an eminent enterprise, we Manufacturer, Supplier and Exporter offer 3/2 Way Pilot Operated Solenoid Valve. Moreover, our provided valve is available at cost effective prices. It is widely applauded and cherished because of its longer life and optimum design. For manufacturing it, we make use of only the first-rate raw material. A team of qualified experts strictly matches the quality to industrial quality standards to ensure there is no drop in the quality.

Additional Information:

• Type: 3/2 Way Pilot Operated NC, Poppet type design
• PortConnection: 1/4" BSP
• Mounting: Suitable for sub base mounting
• Media: Air
• Operating Temperature: 80°C max
• OperatingPressure: 2-10 bar
• Orifice: 6 mm
• FlowFactor: 12 KV
• Coil: 230 VAC / Class 'F' Insulation / Size 1 / IP65 Protection
• Coil Power Consumption: Inrush VA-18 / Hold On VA-12 / Wattage - 6W
• Valve Body Material: Aluminium alloy hard anodized
• Manual Override: Knob type lockable arrangement
• OperatingPressure: Solenoid Valve for Single Acting Cylinder
