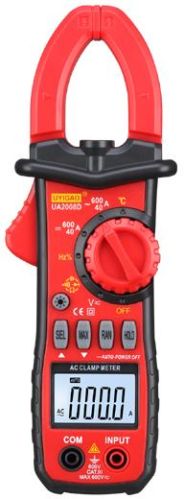

Contact SupplierWe are offering 3 3/4 ac dc digital double open clamp meters 2a/600a with floodlight/c.
in line with gb t 13978-92
digital clamp meter
comply gb4793.1-1995 (iec-61010-1) safety requirements for electronic measuring instruments
belong to two pollution, over-voltage standard for cat iii 600v
pliers head lighting function
auto manual range
data retention
max min measurement
automatic shutdown
background light
display: display the maximum number of 1999
dc current: 60a 600a ±(2.0%+8)
ac current: 60a 600a ±(2.0%+8)
dc voltage:
600mv 6v ±(0.5%+5)
60v 600v ±(0.5%+5)
ac voltage:
6v 60v ±(0.8%+5)
600v ±(0.8%+5)
inrush current: 6a60a600a less than 6a (0.5% + +60
resistance:
600ω 6kω 60kω 600kω ± (0.8%+3)
6mω 60mω ± (1.2%+3)
capacitance:
9.999nf99.99nf999.9nf ±(3.0%+5)
9.999uf99.99uf999.9uf ±(3.0%+5)
9.999mf99.99mf ±(5%+5)
frequency:0~10mhz ±(0.3%+5)
temperature:
-50-300℃ ±(1.0%+4)
-58-600f ±(1.9%+5)
301-1000℃ ±(1.2%+6)
601-1832f ±(1.9%+6)
dusty 10%-90%
continuity test
diode test
the maximum jaw opening size: φ36mm
power: 1.5v (aaa) × 3
dimensions: 208 × 78 × 35 mm
weight: about 240g (without batteries)
