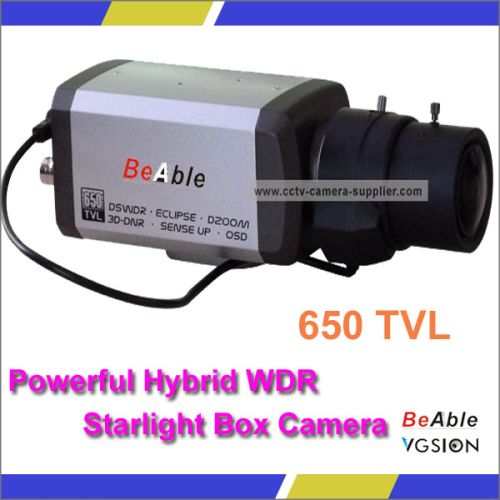

3.5-8mm Anpherical Optical Auto Iris Lens 650TVL Hybrid WDR Starlight Low Illumination CCTV Camera

Oustanding Features:
�0.00003 lux mini illumination
�Real 600 TVL for color picture
�support 3D-DNR & sense up
�3.5-8mm anpherical optical auto iris lens
Technology Date Sheet:
Model NO.: VG-WDR650B
Signal System NTSC PAL
Scanning System 2:1 Interlace
Scanning Frequency(H) 15.734 KHz 15.625 KHz
Scanning Frequency(V) 59.94 Hz 50 Hz
Image Sensor 1/3" Ultra Low Illumination CCD
Sync. System Internal
Total Pixels Number 811(H) x 508(V) 410K 795(H) x 596(V) 470K
Effective Pixels Number 768(H) x 494(V) 380K 752(H) x 582(V) 440K
Horizontal Resolution 650 TV Lines for color pictures
Video Output Level 1.0 Vp-p (75Ω,Composite)
S/N Ratio More than 52dB
Lens Mount CS Mount
White BAL Manual , ATW, COL-Roll and Push
AGC Off / Low / Middle / High
BLC Off / Low / Middle / High
Digital Slow Shutter Off/2x~128x Field
OSD Menu English, Korean, Russian, Spanish
WDR (Wide Dynamic Range) High ,Super, low and Middle
3D-DNR Level (0~63)
Picture freeze On/Off
Electronic Shutter Speed 1/60~1/90,000 Sec. 1/50~1/90,000sec.
Power Voltage 12V/24V DC
Power Consumption Max. 3.3W / 270mA
Weight (Net) Approx. 324g
