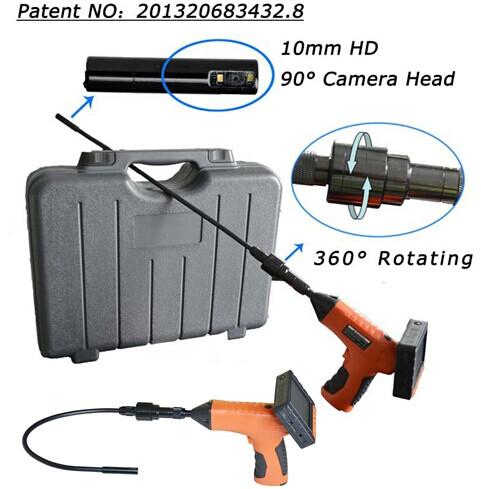

Contact Supplierwe are offering 3.5 inch side view wireless screen flexible borescope.
item no: av7810sw
part name:360 degrees revolution side view wireless video borescope
specification
image sensor:vga cmos sensor
effective pixel:720(h)x525(v)(n)720(h)x625(v)(p)
focus distance:20mm-80mm
side view angle:90 degree fov(d)
revolution direction:360 degrees
led illumination:2 leds, illumination can be adjustable in 6 levels
usb interface:usb 2.0
data output
video output, connected to tv or pc
screen 3.5 tft lcdqvga 320*240 16.7m color
record and photograph
resolution:640*480
0 standard jpeg video
(w audio) resolution:30fps
photo format:jpg bmp jpeg
video format:avi
image capture format:jpeg
memory card:(sd card not included)supports sd card
capacity up to 32gb
functions
image can be displayed with 180 degrees rotating
picture freezing and taking photos in frozen state
real time clock with photo and video
image dynamic monitoring (motion detecting) function
to enlarge or reduce the maximum:8 times
automatic recognition of ntscpal
composite video output
ten minutes without operation, automatic closure of tft into power saving mode
language:english,french,german,italian,spanish,portuguese,simplified chinese,traditional
chinese,japanese,korean,russian.
equipment dimensions
monitor dimension:112*82*25.5mm
handle dimension:195*140*45 mm
probe dimension:3.9mm(5.5mm9.0mm17mm)
snake tube dimension:1000mm
pe box size:450*350*130 mm (optional)
host voltage:5v
working current:600mah
chargerpower
output voltage:5v
input voltage100-220v
input current:2a
3.7v builit-in li rechargable battery in screen part
power:4 aa battery in handle
working temperature:0-45 centigrade
standard accessory:1 a dapter,1 usb cable,1 av output cable
