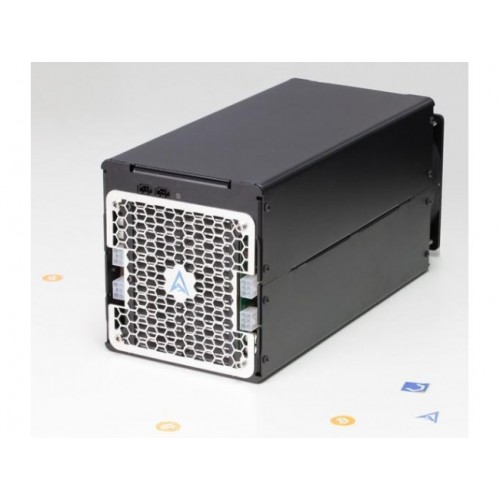

3.5THS AVALON 6. BATCH 2

hash rate： 3.5t±10%

power at wall 1100w（power efficiency 90%）。
quantity of chips 80
power connector 4x 6pin，all 4 connectors required when running
temperature max operating ambiant air temp 38℃
controller raspberry pi（version 1，b，b+），。
each raspberry pi can control 10 units
protection the machine will not start when the fan is damaged 。
dimension 136×150×334mm
weight 4.8kg
power supply 1200w gold power supply recommended

a raspberry pi controller is needed for this machine to function.

raspberry pi, version b or b+ (rpi 2 is not yet supported)

each rpi can control 50+ miners

(we can sell rpi kits for $75)

communication interface:

iic/i2c

working environment:

0c to 35c, 10% to 80% relative humidity, non-condensing

transport / storage environment:

-15c to 40c, 10% to 90% relative humidity

dimensions:

354mm x 130mm x 150mm

weight:

4.3kg

performance variance:

± 5% variance possible on quoted performance statistics
