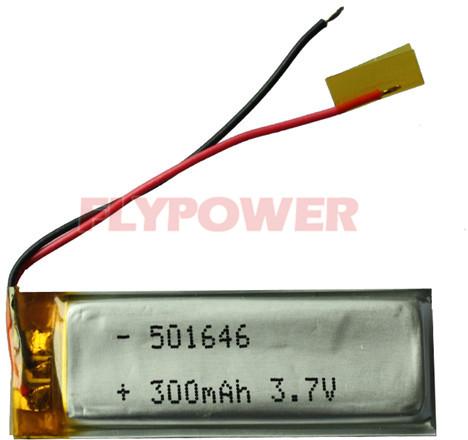

3.7V 300mAh Lithium Ion Polymer Battery Pack (1S1P Of FLP-501646)

1. Model: 3.7V 300mAh Lithium ion Polymer Battery pack (1S1P of FLP-501646).
2. UN, RoHS, CE approved Polymer Li-ion Battery pack.
3. Li-ion Polymer Battery pack OEM orders are welcomed.
4. Li-on Polymer Battery pack is widely used to Notebook, PDA, Information Devices, Bluetooth, Mobile phone, Power tools, Remote Control Toys, Aeromodellings, MP3, etc.
5. Battery packs are available.
6. Bulk pack, blister card are available.
7. Customizes shapes, capacity, and voltage are accepted.
8. Individual cells can be assembled in parallel or series into stacks as required by customers.
9. No memory effect, High voltage, high energy density, long cycle life.
10. Eco-friendly.
Cell: Lithium Polymer
Model: 1S1P of FLP-501646
Nominal Voltage: 3.7V
Nominal Capacity: 300mAh
Minimal Capacity: 290mAh
Charging Method: CCCV(Constant CurrentConstant Voltage)
Charge Current: Standard charge : 0.2C(100mA)
Rapid charge : 0.5C(150mA)
Charging Time: Standard charge : 8.0 hours (Ref.)
Rapid charge : 4.5 hours (Ref.)
ContinuousDischarge Current: 1.0C (300mA)
Cut-off Discharge Voltage: 3V±0.05V
Overcharge Voltage 4.28±0.025V per cell
Over Discharge Cut Off Voltage 2.4±0.05V per cell
Short Circuit Protection Recover after removing the short circuit load or recharge
Dimensions(T.W.H.): T*W*L: 5.1mm * 16.2mm*48.5mm
Weight: Approx. 6.5g
Operating Temperature: Charge : 0 ~ 45 ºC
Discharge: -10 ~ 60 ºC
Storage Temperature: at -5 ~ 35 ºC Recommend(25±5 ºC)Note:Storage capacity should be 40%~50% full charge capacity
