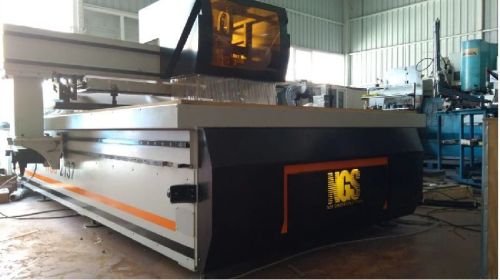

3 Axis CNC Router, Power : 12000, Certification : CE

Technicial Specifications

·         Aluminum vacuum tray with automatic control in 8 zones

·         Stability systems are available to provide component engagement in the X and Y axes

·         Precision gear, Liming Servo Gearmotors are used on all axes.

·         The control unit Panasonic

·         Italian HSD brand 7,5-9 KW (12HP) 24000 rpm, HSK F63 spindle motor with ceramic ball bearing and automatic tool change.

·         As standard there is a 10-spoke six-carriage magazine.

·         There is a hand song that allows manual use on the machine.

·         Automatic lubrication system at 13 points

·         Clear working area 2100 X 3700 X 200 mm

·         Machine G00 max speed is 80 m / min

·         Automatic draining and sweeping system available.

·         ALPHA-Glass design program compatible with the machine is available for 1 year rental.

·         Average weight 4500 KG

·         Vacuum pump GREENCO 500m3 maintenance-free dry vacuum pump can be added as an option.
