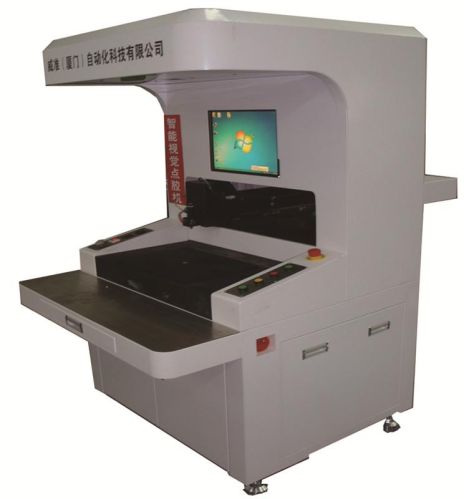

Imported 3 Axis Robotic Fluid Dispenser Machine, Brand Name : VS

Vs automatic dispensing machine with intelligent vision system
i.e. Standing 3 axis robotic dispenser
highlight:
1. Intelligent vision system
can indentify all the object on the working platform even if they are placed irregularly.â
2. High efficiency
automatically work out the movement track of the glue gun.
3. Support various tracks
can be used to drawâ points, lines, polygons, arcs, circles, irregular curves, continuous tween and three-axis motion
4. Applies to various fluid
suitable for dispensing uv glue â ab glue â epoxy (vinyl) â white glue â emi conductive â silicon â epoxy â instant â elargol â red gum â tin paste â thermal grease â soldier paste â transparent paint etc.â
5. Enlarged working range (platform up to 500*500)
6. Floor standing design (ensures stable and precise working state)
specification sheet:
operation system windows (chinese english)
cameraâ  5,000,000 pixels
control system integrated computer and ivs-6000 control system
precision â±0.015mm
working platform regular 400*300mm; up to 500*500mm
weight 800kg
about vs�
vs� is a leading brand of vison system in china. The brand is owned by vision (xiamen) automatic technology co., ltd. Our headquater is located in xiamen, fujian province. We supply a series of vision supported high tech machine, such as intelligent dispensing machine and aoi (automatic optical inspector).
