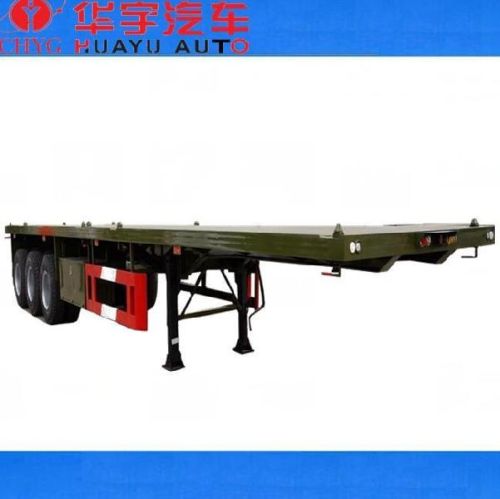

3 Axle 40ft Flatbed Semi Trailer

₹ 10.35 Lakh / Piece

MOQ1 Piece(s)
MaterialQ345
Brand Nameflatbed semi trailer
Application40ft container transport
Country of Originchina
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Shandong Liangshan Huayu Group Auto Manufactory Co. Ltd.

Member Since 10 Years
Nature of Business Manufacturer
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand Nameflatbed semi trailer
MaterialQ345
Application40ft container transport
Country of Originchina
OEM No.optional
brake systemT30 brake chamber
suspensionmechanical
air linedouble
kingpinJOST 2"
wheel rim9.0-22.5
Size40ft
floor3mm checkered plate
functioncontainer transport
twist lock12 pcs
landing gearjost c200
Size12500x2500x1550mm
axlefuwa
tire12R22.5

CHYG flatbed semi trailer

Function

Container transporting (1x40ft;2x20ft)

Overall demension

12400x2500x1550mm

Loading capacity

50ton

Main beam

(material :Q345)

Beam height :500mm

Upper plate:14mm

Down plate:16mm

Middle plate:8mm

Side beam

16# U shaped steel

Traction pin

2/3.5 inch

Landing gear

Jost /fuwa/ standard 28t two speed

Fuwa/bpw/hj/L1/yuek 3x13ton the brand can be optional

Suspension type

Mechanical normal suspension

Leaf spring

10/10/10 (10X90X13mm)

Triangle/double star/chengshan/double coin/chaoyang 12R22.5 16PR 12pcs optional

Wheel rim

9.0-22.5 12pcs

Twist lock

12 pcs use for 1X40ft ;2x20ft container transport

Plateform thickness

3mm checkered plate

Brake chamber

4 double 2 single

Tool box

Spare tire carrier

2 pcs

Side marker lamp

LED lamp

Electrical system

Chinese stand 24v

Air line

Double air line

Receptacle

7 ways(7 wires harnesses)

Marking

As Customer requirment

Accessories

Head wrech ;spare wheel crank

Details

DIMENSIONS 2/3 axle flatbed semi trailer
Tare weight	6200KGS	Payload	35000KGS
Overall length	7850mm	Overall Width	2480mm

Specifications

Chassis	Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes.Top flange 14mm,width140mm;Middle Flange 6mm;bottom flange16mm,width 140mm
Axle	2 axles
	Brand name:BPW.L1 or FUWA –optional upon choice
Suspension	Mechanical suspension or air suspension
Spring	Leaf spring or air bag
King pin	JOST brand2’’ bolt-in king pin
Twist lock	12 no.of ISO twist lock for 1x20ft,2x20ft,1x40ft container
Landing gear	JOST brand two-speed,manual operating ,heavy duty landing gear
Wheel rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice
Tyre	11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 tire optional
Spare tire	One set of spare tire including a carrier
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
Paiting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories	One standard tool box

Additional Information

Payment Terms L/CT/T
Port of DispatchTIANJIN
Packaging Details1.naked packing:3 pcs one packing .the volume 12500x2500x3600mm=112 cbm 2.container packing:the rear cut one container can loading two trailer 3.SKD 4.CKD
Delivery Time20DAYS
