Q235 3 Axle Dump Semi Trailer Manufacturer in Liangshan County shandong China

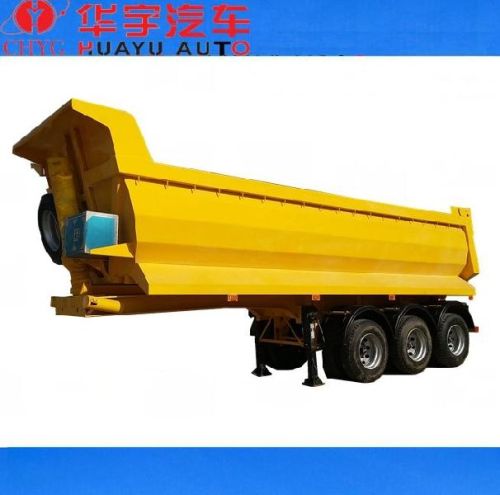

Q235 3 Axle Dump Semi Trailer 10000x2500x3750mm, Brand Name : CHYG

Price:

21.23 Lakh / Piece Get Latest Price

Minimum Order Quantity : 1 Piece(s)
Sold By : Shandong Liangshan Huayu Group Auto Manufactory Co. Ltd.

Product Specifications

MaterialQ235
Brand NameCHYG
Applicationstone transport
Size10000x2500x3750mm
OEM No.optional
Country of Originchina
suspensionmechanical suspension
landing gearJOST C200
brake systemWABCO
wheel rim9.0-22.5
cylinderHYVA 196-5-7300
tire12R22.5 triangle brand
electricity24v LED light
floor thickness8mm
max payload50ton
axlefuwa
ABS4S/2M
spring leaf10x90x16mm
box body thickness6mm
kingpinJOST 2"
Model NumberLHY9407
Supply TypeManufacturer

Preferred Buyer From : All over the world

Product Overview

CHYG dump semi trailer

Function

Stone/coal transporting

Overall demension

10000x2500x3650mm

Loading capacity

50ton

Main beam

(material :Q345)

Beam height :500mm

Upper plate:16mm

Down plate:18mm

Middle plate:8mm

Tare weight

12ton

Traction pin

2/3.5 inch

Landing gear

Jost /fuwa/ standard 28t two speed

Axle

Fuwa/bpw/hj/L1/yuek 3x13ton the brand can be optional

Suspension type

Mechanical normal suspension ï¼�air suspension can be optional

Leaf spring

10/10/10 (10X90X16mm)

Tire

Triangle/double star/chengshan/double coin/chaoyang 12R22.5 18PR 12pcs optional

Wheel rim

9.0-22.5 12pcs

Box details

Plate form :8mm side wall:6mm

Plateform thickness

3mm checkered plate

Brake chamber

4 double 2 single

Cylinder

HYVA 196-7300/214-5-7130/8130/9130 optional

Spare tire carrier

2 pcs

Side marker lamp

LED lamp

Electrical system

Chinese stand 24v

Air line

Double air line

Receptacle

7 ways(7 wires harnesses)

Marking

As Customer requirment

Accessories

Head wrech ;spare wheel crank

Box

One

Details

Type	8cubic meters concrete mixer truck
Chassis model	ZZ1256N3846C/N1FA36(steyr king brand)
Dimension	10290x2500x3995mm
Total weight	25000kg
Rated loading capacity	11850kg
Axle no	3 axle (HJ/FUWA/BPW)
Wheel base	3600+1350mm
Tire specification	12.00-20(11pcs)
Engine model	WD615.95(sino truck brand)
Power	336HP
Emmission standard	China 3
Fuel material	Diesel
Max speed	90km/h
Feeding speed	≥3m3/min
Output speed	≥2m3/min
Speed reducer	Import from italy
Water box capacity	300L
FOB qingdao price	50000USD
8m3concrete mixer	Italy PV089 pump,MF089motor,6SP Gearbox,China 12R radiator
9m3concrete mixer	Italy PV089 pump,MF089motor,TOP P68 Gearbox,China 12L radiator
10m3concreter\ mixer	Italy PV089 pump,MF089motor,TOP P68 Gearbox,China 12L Radiator
11-12m3concrete mixer	Italy PV089 pump,MF089motor,TOP P75 Gearbox,China 12L Radiator
14m3 concrete mixer	Italy PVA090 pump,MF090motor,TOP P75R or P80 Gearbox,China 25L or 26L Radiator
16m3 concrete mixer	Italy PVA090 pump,MF090motor,TOP P80 Gearbox,China 25L or 26L Radiator
Mixer body material	5mm or 6mm steel plate
Tractor truck model	64 or 84

Additional Information

Payment Terms L/CT/T
Port of DispatchTIANJIN
Packaging Details1.naked packing 2.container packing:tire and axle cant assembly 3.SKD 4.CKD
Delivery Time30 WORKDAYS
