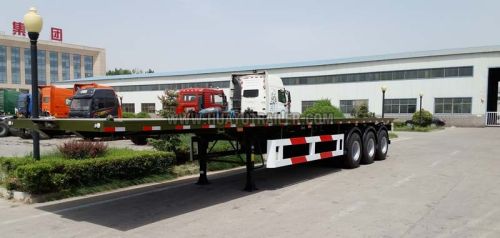

3 Axle Flatbed Semi Trailer

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

3 Axle Flatbed Semi Trailer is one of the most heavily used varieties of Semi Trailers and thus is in huge demands all across the world. We are one of the most trusted manufacturers and suppliers of superior quality 3 Axle Flatbed Semi Trailers in China and are also renowned for our quality supplies of 3 Axle Flatbed Semi Trailers in various foreign markets. We offer them at market competitive prices and ensure the best possible amongst all available on the market.

View More Details

Send Enquiry

Details

Type	Semi trailer
Weight	4500kg-8000ka
Tare weight	30T-60T
Loading capacity	13T/16T
Axle weight load	----
Specification	-----
Axle number	Two or three
Axle brand	Fuwa/hj/bpw
Suspension	Air suspension or mechanical suspension
Wheel	11.00R22.5/12.00R22.5 Vacunnm tire/Triangle or double cone brand
King pin	JOST 2.0 ``or “3.5``
Dimensions(LWH)	13000/1250025002700
Support legs	28Tons/JOSTD200T
Rim	8.2522.5/9.0022.5 Vacunnm tir zhengxing brand
Wheelbase	6750+1310+1310mm,6550+1310+1310
Steel spring	10/10/10pieces per axles
Twist lock	No
track	1840/1840/1840
Tire number	Can be choose freely
Spare tire carriers	2/4 pieces
Frame
Material of main beam	Material SSAB high stress steel .the height of the beam is 450/500mm,the uper and the down plate is 8mm,middle plate is 5mm
Side board	The height is from 600-1500mm
Platform plate	3mm flat plate
Mixer body material	5mm or 6mm steel plate
Tractor truck model	64 or 84
