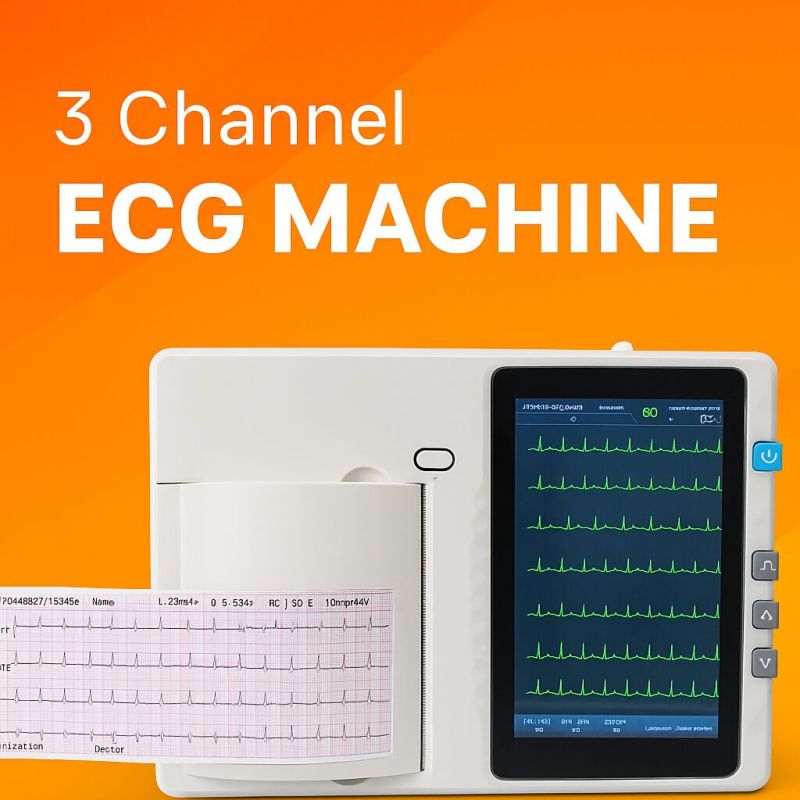

Electric 3 Channel Digital ECG Machine, Brand Name : Empiric

Working Environment

Temperature: 5~40 Degree C

Relative humidity: 25%~95%(non-condensing)

Atmospheric pressure: 700hPa~1060hPa

Transport and storage environment

Temperature: -40~+55 Degree C

Relative humidity: ≤95%

Atmospheric pressure: 500hPa~1060hPa

Physical characteristic:

Performance:

Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2%

Input circuit current: ≤50nA

Input impedance: ≥50MΩ

Sampling accuracy: 12-bit

Safety classification: class I, type CF and defibrillation-proof applied part

Recording mode: thermal printing system

Auto record: set record according to auto record format and mode, automatically switching leads, measuring and analyzing.

Rhythm record: set record according to rhythm record format and mode, automatically measuring and analyzing.

Manual record: set record according to record format, manually switching leads.

Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)

Accessories

A lead cable

A limb electrode

A chest electrode

A thermal recording paper

A power cord

An earth wire

A user manual
