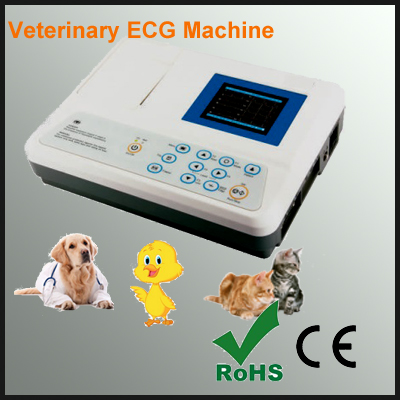

Contact SupplierWe are offering 3 channels ecg machine.
Features
●portable and delicate design, easy to operate
●accurate pulse pace identification function
●high accuracy digital filter, automatic baseline adjustment
●working modes: manual, automatic, arrythmia analysis, storage
●80mm, 3 channel format recording, excellent automatic interpretation
●320x240 graphic 3.5 inch color lcd to simultaneously display ecg information
●250 patient cases storage ( sd card storage is optional )
●detailed patient information record
●freeze function
●adapt to 110-230v,5060hz power supply. Built-in rechargeable ni-mh battery continuously working for about 3 to 4 hours.
●usb rs232 communication ports support usb storage, laser printer printing and pc ecg software ( optional )
technical specifications
● leads: standard 12 leads
● patient current leakage: <10μa
● lead acquisition:12bit1000hz(synchronously 12 leads )
● calibrating voltage: 1mv±2%
● work mode: manual, auto, r-r analysis
● voltage tolerance: ≥±500mv
● time constant: ≥3.2s
