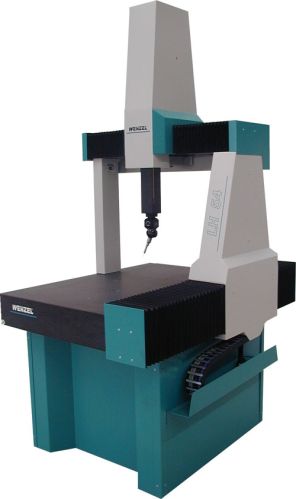

3 Coordinate Measuring Machine

We are offering 3 coordinate measuring machine.
* cnc bridge design measuring machine with touch-trigger
or scanning probe systems.
* all granite guide-ways are accurately hand-lapped.
* compact design operator workstation, with integrated
controller and computer.
* cmm available in multiple sizes for the optimal selection of
the required measurement volume.
* the y-axis guide-way is machined directly in the base plate,
providing optimal long-term stability.
* pre-stressed, encompassing air bearings in all axes.
* active pneumatic vibration damping.
* compact ht400 control panel with central, logarithmic
joystick. Mouse function and context-sensitive function
buttons. Selectable joystick's axis assignment.
* kinds of probe systems( (e.g.renishaw ph6,
ph10mph10t, tp200,sp25) scanning and single-point
probe. Ultra-precise and flexible for stylus lengths of up to
200mm, optionally up to 400mm. Probe module and stylus
can be changed via optional tool changer. Use with ph10m
or ph6m. For scanning and single-point probing.
* user-friendly windows software metrosoft cm for measuring
and evaluating geometry and free-form elements(option)
* graphic user interface featuring extensive automatism to
support the user.
