3 Dies Thread Rolling Machine, Certification : ISO 9001-2008, CE

₹ 10.95 Lakh / 13500 13500 Set

MOQ1 Set(s)
CertificationISO 9001-2008, CE
Applicationconnectors, bicycles, auto parts
Total Carbohydrate12 months
Supply voltage380V
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Shenzhen Tobest Machinery Manufacturing Co. Ltd

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 1998

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Applicationconnectors, bicycles, auto parts
CertificationISO 9001-2008, CE
Total Carbohydrate12 months
Weight(reference)1270KG
Supply voltage380V
Bearing brandNSK,UBC
Dimension(L*W*H)1600*1500*1600mm

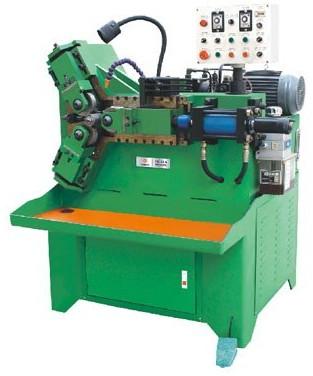

We are offering 3 Dies Thread Rolling Machine Bolts Making Machine. Diameter for the threads rolled φ18-φ60mm
Range of pitch rolled 1.0-4.0P
length of thread rolled Fixed and rolling through for option
Spindle speed 220360560750rpm (variable speed)
Outside diameter of rolling die φ118mm- 130mm
Inside diameter of rolling die φ40mm
Thickness of rolling die 50mm
Distance between the roller shaft 105-90mm
Output(pcsmin) 4-25(pcsmin)
Swiveling Angle(degree) ±3°
Main power motor 5.5HP(4042W)
Hydraulic motor 3HP
Max rolling pressure 12T
