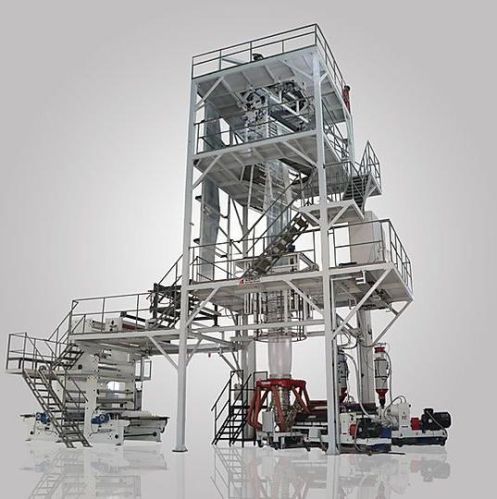

3 Layer Blown Film Plant

3 Layer Blown Film Plant

The Innoflex Multilayer Co-extrusion Blown Film Lines Are Available In A Wide Range Of Configurations From Three Layer Non Ibc As Well As Ibc Machines To Produce Variety Of Films.

With Passion For Innovation, We Deliver Value For Our Customers. With The Innoflex, We Redefined The Way Our Customers Can Achieve Consistent High Quality Film, Better Output And Best In Class Flexibility By Providing Customized Machine Configurations.

The Lines Are Capable Of Producing Different Kinds Of Materials Like Ldpe/ Lldpe/ Hdpe/ Pp/ Mlldpe/ Sealant Polymers/ Additives/ Masterbatches Etc. The Machine Combination Helps To Reduce The Recipe Cost By Allowing The Processor To Run Layer Ratios Upto 1:3:1. Three Layer Blown Film Line Is Equipped With State-of-the-art Cylindrical Spiral Die. Short Polymer Flow Passages Decrease Residence Time Which Is Of Great Benefit When Processing Thermally Sensitive Materials, Reduces Polymer Degradation And Quick Changeover Of The Materials.

Optional Devices​

Gravimetric Dosing System, Extrusion Process Control, Air / Water Chiller, Corona Treater,

Bi-metalic Screw & Barrel Set, Hydraulic Unloading, Digital Web Aligner, Empty Shaft Loading System,

Hydraulic Unloading System, Main Panel Air Condition, Auto Thickness/width Control, S Wrap Cooling System Etc.​

Technical Specification

• Model Name:  Innoflex Three Layer Co-extrusion Blown Film Plant
• Material Used: Ldpe, Lldpe, Hdpe, Pp, Co-polymer, Eva Etc.
• Output Range: 100 - 500 Kg/hr (Depends On Extruder's Size)
• Screw Diameter: 40/45/55/60/65/75/90 Mm (Customized)
• Screw L/d Ratio: 30:1 (Customized)
• Layflat Width: 1000 - 3000 Mm
• Thickness: 20 – 200 Micron

Applications Of 3 Layer Blown Film

Lamination Grade Films, Liquid Packaging Films, High Dart Ffs Resin Sacks Films, Cereal Packaging Films, Oil Packaging Films, Pharma And Medical Grade Films, Pallet Hooding Shrink/stretch Films, Green House Films, Silage And Mulch Films And Chemical / Soap Packaging Films And Many More.
