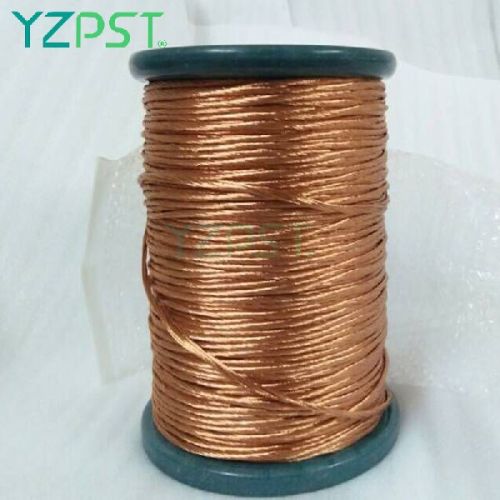

3 Mm Elements Resistance Triple Insulated Litz Wire

Litz wire  SD QA-2 0.05*2000 This is litz wires with one or more layers of extruded jacket. The wire has all the properties of Litz wire, also has extremly insulation performance and mechanical properties. Feature and benefits: 1. High wear resistance 2. Very good mechanical strength 3. Easy to strip and sold or weld 4. Exellent insulation. 5. Flame retardan Application: Heating elements; signal transfer wire. YZPST manufactures a wide selection of litz wire for custom applications. Our constructions include numerous fine-strand enameled wire & insulation configurations which enable us to produce litz wires that can perform and with strand various loads and conditions. Our wire, come in various servings and the inner enameled wire conductor can be suited for various temperature classes and for various temperature classes and requirements. We have stock wires in our factory, but our speciality is custom constructed litz. Any litz wire can be twisted in concentricity or aggregation according to the demands  of customers. Conductor Diameter*Strand Number Measured breakdown voltage   (V) Maximal Resistance(Ω/m at20℃) Copper section     (mm²) Envelope of the maximum diameter(mm) Actual diameter(mm)  length per kg    (M/kg) 1UEW+NY QA-2 0.05* 500 >1000 0.0158~0.0207 0.98 1.96 1.87 105 1UEW+NY QA-2 0.05* 1000 >1000 0.0079~0.0104 1.9600 2.75 2.64 54 1UEW+NY QA-2 0.05* 2000 >1000
