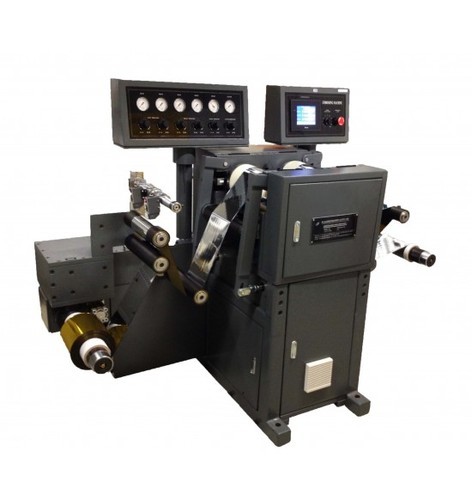

Hologram Embossing Machine, Voltage : 3 Phase 50 HZ

Listing ID #4448175

10 Lakh / Piece

Get Latest Price

MOQ 1 Piece(s)
Voltage3 Phase 50 HZ
Weight700 kgs. Approx.
Compressed Air Required6 Bar
Unwind Roll dia300 mm
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Voltage 3 Phase 50 HZ
Weight 700 kgs. Approx.
Film thickness 24-75 microns
Embossing speed 10-20 mtrs./min adjustable
Rewind roll dia 300 mm
Unwind Roll dia 300 mm
Pressure Control Manual
Unwind & Rewind Core dia 76 mm
Unwind/Rewind Tension Control Auto/Manual
Power Required 12 k.w.
Line speed indicator Digital (included)
Compressed Air Required 6 Bar
Web Width 160mm
Dimension 72″ X 24″X60″
Mechanical Speed 20-40 mt/min. adjustable
Working width for hard shim 180 mm
Embossing Capacity 155mm
Substrates Polyester

Complete with unwinding of Polyester film with tension control, magenetic brake, idler roller, heavy duty frame for easy load or unload the polyester film roll, all idler roller are dynamically balanced M.S. with grinding and chroming mirror finish. main embossing roller shim mounting roll, specially designedwith heating system driven with 2 H.P.AC variable drive and impression roller are also specially designed and mirror finishing.

Interested in this product? Ask for more details & Latest Price from seller
