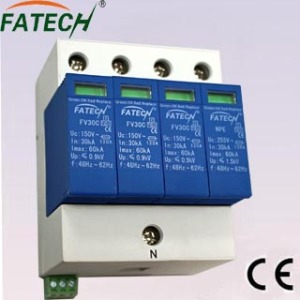

3 Phase Lightning Arrester, Brand Name : FATECH

We are offering 3 phase - ac power 4 poles lightning arrester, din rail mount replaceable surge modules with 4 mov imax 60kapole.
fv30c4 s three phase ac power lightning arrester are suitable for lightning and surge protection in ac 5060hz, 220380v.
features of the lightning arrester:
there is a thermal cutoff member inside the lightning arrester, when the device is over-current or over-voltage and the puncture is nonseviceable, the thermal cutoff member will automatically separate from the lightning arrester from the electrical network, and the indication window will turn red from green.
application of lightning arrester fv30c4 s:
ac power line of house, bank, telecom tower and so on.
certificate of the lightning arrester:
ce-lvd
we also can supply dc lightning arrester for photovoltaic (pv) system protection 1000vdc, surge protective device with imax 150ka. And type b surge arrester with spark gap.
model no. fv30c4-320 s
max. Continuous operating voltage uc v 320
requirement class to din en 61643-1: 2005 class c
rated voltage un v 220380
nominal discharge current (820μ s) in ka 30
max. Discharge current (820μ s) imax ka 60
voltage protection level (at in) l-pe up kv ≤ 1.8
voltage protection level (at in) n-pe up kv ≤ 1.8
response time ta ns
recommended back-up fuse a 125
operation temperature range -40 ~ +85 degree
degree of protection ip20.
