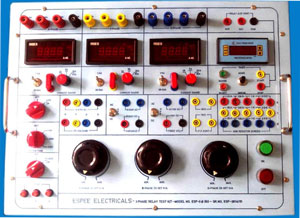

3 Phase Relay Test Kit MODEL-ESPRTK3

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

It generate AC 3 Phase Voltage, DC Voltage, AC/DC Fixed Voltage, Output variable 3 Phase current source 10 mA to 50 Amps x 3. Three separate dimmer for voltage & current mode. Relay test kit is made....

View More Details

Send Enquiry

Company Information

Espee Electricals

Dombivli, Thane, Maharashtra

View Number

Member Since 15 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

FEATURES
»	Time range Sec : 9.999,99.99,999.9, 9999 sec.
»	Timer sensing external No/NC contact.
»	Timer range reset & make / brake facility.
»	External current meter calibration facility for all three phases
»	Multi range current meters.
»	Output Current : 0 to 5A without CT and 50Amps with CT.
»	Output current terminal indicating respective phase colour code.
»	Variable AC Voltage 0-250V / 2A, DC Voltage0-300V / 2A
»	Fixed voltage 110V AC & DC / 2A
»	Potential free contact No /NC 6 Amps
»	External register burden 25 Ω , 100 Ω, 1 K Ω, 2.5K Ω, 50 watts
»	ON / OFF push button with indicator.
»	Auto / Manual switch.

PROTECTION
»	Glass fuse provided for overload and short circuit protection for individual Phases.

ASSESSORIES
»	Input Supply Cord.
»	Testing probe for voltage & current .
»	Sensing probe.
»	Testing probe with bag.
»	Operating manual.

DIMENSION
»	550 X 350 X 200 MM

WEIGHT
»	40 Kg Approx.

TECHNICAL SPECIFICATION:

1	Operating Voltage	415V 3 Phase 50 Hz four wires
2	Output Voltage	a) 0-415VAC Phase To Phase With respective Neutral 0-230VAC b) 0-230 VAC c) 0-300 VDC d) 110 V AC fixed e) 110 V DC fixed
3	Output Load Voltage & Current	R Phase – 0-100V / 0-5Amps ± 5% 0-20 V/0-25 Amps ± 5% 0-10V /0- 50 Amps ± 5% Y-Phase – 0-100V / 0-5 Amps ± 5% 0-20 V/0-25 Amps ± 5% 0-10V / 0-50 Amps ± 5% B-Phase – 0-100V / 0-5 Amps ± 5% 0-20 V/0-25 Amps ± 5% 0-10V / 0-50 Amps ± 5%
