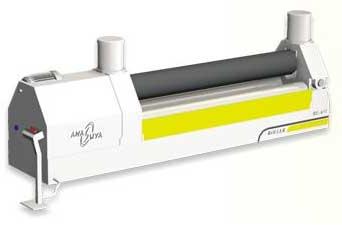

3 Roll Plate Bending Machine

We take great privilege in offering to the clients technologically advanced Roll Plate Bending Machine. Roll Plate Bending Machine that we offer is made in accordance with international standards and suits the set industrial requirements. Roll Plate Bending Machine is made using high grade components ensuring their quality and durability.
Bending Operations :

• If the thickness of the plate is half its capacity, then it can be bent on the machine by hammering
• Thicker plates are positioned outside the machine
• Set the plate between top rolls and bottom by adjustments of top roll manually
• Place the top roll downwards and provide pressure on the plates
• Clock wise turn the main motor untill one end of the plate comes over the first bottom roll
• Reverse the motor and get second end on the second bottom
• Continue the process till you get the desired results

• Easy to use
• Noise-free performance
• Low maintenance cost
• Smooth functioning
• Durable
• Longer service life

• Main Drive Motor
• Frame built of laser cut high strength steel, welded, stress relieved and sand blasted
• Hydraulic pressing system on top roll
• Hydraulic unit by Rexroth and valves by Aron
• Screw jeck drop-end
• Mechanical rolls parallelism
• Bending rolls assembled on heavy duty SKF bearings
• Centralized lubrication by means of a hand pump
• Separate controls on control panel
• Movable work station with pair of foot switch
• Pair of lifting links
• Safety devices and operating manual according to CE norms

• Hardened rolls to HRC 54-56
• Automatic rolls parallelism by a micro processor
• Tilting of the bending rolls by means of proportional valves and PLC
• Top roll hydraulic balancing system
• Variable speed
• Section bending tools
• Vertical hydraulic support max. Ã�2500 mm/ 98â�� & max. weight 1600 Kg/ 3530 lbs
• N.C. Operated Stroke control
• First fill of hydraulic oil
