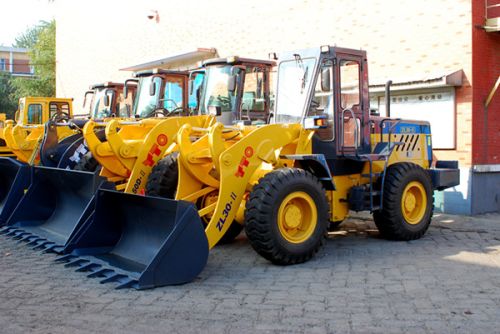

3 Tons Wheel Truck Loader

We are offering 3 tons wheel truck loader.
Main features:
1. Yto lr6b3-22 diesel engine is adopted, which is of high power reserve, strong dynamic power, economical fuel consumption and green environmental protection.
2. Adopts single-stage three-element hydraulic torque converter, fixed-shaft, four-forward two-backward power gearbox，with reliable performance.
3. Fully hydraulic diverter, with easy and flexible operation, little turning radius, and stable performance.
4. Front and rear frame adopts chamber construction, with high strength and good rigidity.
5. Four-wheel double-pipe clamping-type brake, with gas tank on both sides, good braking during operation，fully reliable.
6. Z-type connection rod，high digging force , and high shovel efficiency.
7. Integral operation platform, streamline design, and humanized operation layout, equipped with new type of electronic instrument, capable of quickly monitoring the working condition of the whole unit.
8. New type of steel cab，with good sealing and vibration absorption , and broad field of vision.
9. Standard heating and ventilation equipment, air conditioner optional.
10. Adopt domestically most advanced directional combination instrument console and electric lock against wrong start，fully showing the design philosophy of respecting the people.
Technical parameters:
model zl30-ii
total weight kg 9950
bucket capacity m3 1.7
rated load kg 3000
movable arm lifting time s ≤6.5
three item time s ≤12
forward i-iv gears kmh 6.5~36
reverse i-ii gears kmh 7.5~23
max. Slope angle ° 28
min. Turning radius mm 5700
wheelbase mm 2600
min. Ground clearance mm 350
dumping height mm 3050
dumping reach mm 974
overall length mm 7105
overall width mm 2400
overall height mm 3080
engine model lr6b3-22
engine rated power kw 92
fuel consumption gkw.h ≤232
fuel tank capacity l 150
