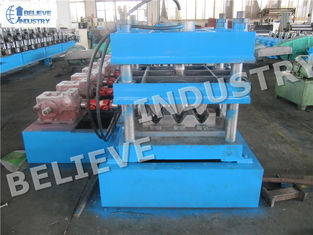

3 Waves Guardrail Roll Forming Machine, Brand Name : Believe Industry

₹ 72.40 Lakh / Set

MOQ1 Set(s)
Brand NameBelieve Industry
Production Capacity60 sets per quarter
Country of OriginJIANG SU
Number Of Flower3 Waves Guardrail
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 9 Years
Nature of Business Manufacturer
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of Flower3 Waves Guardrail
Brand NameBelieve Industry
Production Capacity60 sets per quarter
Total Carbohydrate2 years for all the parts of the machine
After-Sales Service ProvidedCommission and Installation: Free
Country of OriginJIANG SU

We are offering guardrail roll forming machine description:
the 3 waves guardrail roll forming machine is mainly composed of decoiler, punching unit, roll former, cutting device, product table, and control cabinet, etc. The processing flow of this machine includes: decoiling-flattening-punching-forming-cutting. This machine adopts automatic plc control and enjoys high quality forming and high speed production.
technical parameters -3 waves guardrail machine
raw material carbon steel, galvanized steel, q235
material thickness 1.5-3.2mm
material width depend on specific profile
diameter of shaft 110mm
material of shaft 45# steel
material of rolls
gcr15 over quenching hrc 58-62°
main power 30kw
forming speed 8-10mmin
forming station 18 stations
cutting type hydraulic cutting
cutting blade
cr12 mov
