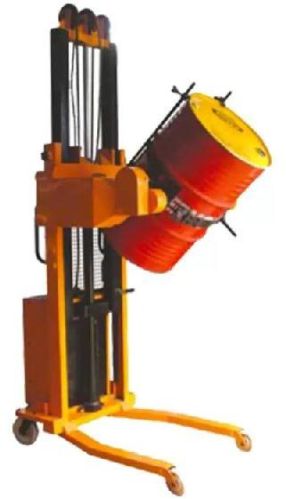

300 Kg Hydraulic Drum Lifter And Tilter MH-HDT-O315T

₹ 81,399 / Piece

Driven TypeHydraulic, Manual
Automatic GradeManual
Brand NameSwift Technoplast
CertificationISO 9001:2015
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

4.5/5

Member Since 18 Years
Nature of Business Manufacturer
GST No. 27AAOCS2091J1ZW

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameSwift Technoplast
Driven TypeHydraulic, Manual
ConditionNew
Automatic GradeManual
ApplicationDrum Lifting And Tilting
CertificationISO 9001:2015
Lifting Capacity200-300ltr
Number Of FlowerDrum Lifter Cum Tilter
Total Carbohydrate1year
Country of OriginIndia
Capacity300 Kg
Overall SizeL 1300 x W 850mm
FeaturesDrum Lifting And Tilting
Steering WheelsDIA 200 x 50 mm – 2 Nos.
Lift500, 1500, 2500 & 3000 mm
Front WheelsDIA 150 x 50 mm – 2 Nos.
Drum Tilting Angle360°
Model Name/NumberMH-HDT-O315T

Swift is supplying quality material handling for Hydraulic drum Handling Equipment is specially designed for the lifting of drums & tilting of drums. Our Drum Tilter & lifter provide great safety to the workers while handling the drums on the shop floor.

Description & Features:

Single man-operated equipment for vertical lifting, horizontal transportation & 0 360 rotation of the drum
Long hand lever for tilting provides effortless rotation of a fully loaded drum without the operator’s fatigue
The damages & wastage of contents are avoided
Tilting is with worm & worm gear, providing positive self-locking at every position of tilt
The chances of accidents due to improper handling of drums are avoided
Scientifically designed with in-built high quality & safety

Technical Specifications

MODEL	MH-HDLT-O315T	MH-HDLT-O325T	MH-HDLT-O330T
Lifting capacity (kg)	300	300	300
Max. Drum Height H1 (mm)	1500	2500	3000
Max. Drum Height H2 (mm)	400	400	400
Load center (mm)	600	600	600
Lift per stroke (mm)	20	20	20
Min turning radius (mm)	1600	1600	1600
Min. Overall Height H3 (mm)	1700	2200	2500
Max. Overall Height H4 (mm)	2400	3400	4000
