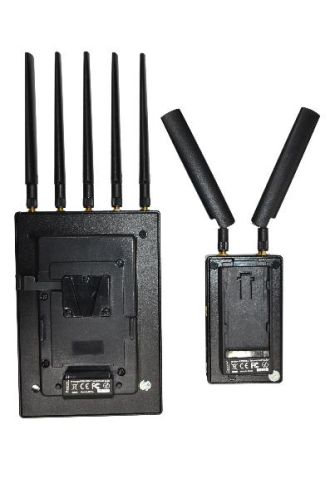

300M Wireless Video Transmission System

Supply TypeSupplier, Retailer
Preferred Buyer Location All over the world

We are Delhi(India) based organization and have become the primary choice of the buyers since our products are qualitative. Our quality control strategies are carefully executed. Thus, our whole....

View More Details

Send Enquiry

Product Details

We are Delhi(India) based organization and have become the primary choice of the buyers since our products are qualitative. Our quality control strategies are carefully executed. Thus, our whole range of product is amongst the most sought-after in the industry.

300M Wireless
HDMI/SDI Transmission

No delay no compression
Working distance : 300m (without video loss) connecting
Distance:> 300m
Channel Selected; 5G frequency band
Support HDMI & SDi input and out
True Full HD 1080 P60 ; 4 : 2 : 2
Point to point & multipoint
Support timecode
Wide Voltage : 7-36V
FCC.CE.ROHS

Connectors & Indicators
HLWH005 Receiver

RSSI (Wireless received signal strenth inidicator), 5 green LEDs
Video input inidicator, 1 yellow LED
Power on inidicator, 1 green LED
Freauency selection knob, 1-10
3G SDI Output
HDMI Output
DC power switch
DC input, LEMO 4-pin B series connector.

HLWH005 Transmitter

Video input inidicator, 1 yellow LED
Power on inidicator, 1 green LED
Freauency selection knob, 1-10
3G SDI input
HDMI input
DC power switch
DC input, LEMO 4-pin B series connector.

Technical Specifications For Wireless 300 Meter

	Transmitter	Receiver
Interface	SDI Input (BNC Female) HDMI Input (Type A Female) 2 Antenna port (2 SMA male) DC Input (4 pin LEMO Female)	SDI Output (BNC Female)HDMI Output(Type A female) 5 Antenna port(SMA male) DC input (4 pin LEMO female)
Supply voltage range	6.5-16.8V DC	6.5-16.8V DC
Power Consumption	<6.5W	< 6 W
Size	(L x W x H): 120 x 70 x 25mm (don’t include antennas)	(L x W x H): 160x 110 x 25mm (don’t include antennas)
Mass	380g	540g
Input Video Format	HDMI - 525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A SDI - 3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425; 1x BNC	-
Output Video Format	-	HDMI - 525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60; HDMI Type A SDI - 3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425;1x BNC
Input Audio Format	SDI embedded 4 channel 24 bit/48KHz	-
Output Audio	-	SDI embedded 4 channel 24 bit/48KHz
Signal Indicator	Power-Green; Video-Yellow	POWER-Green;Wireless RSSI-Green(5 LEDs);VIDEO-Yellow
Frequency Band	5.1-5.9GHz,configurable with China, North American, Europe, etc	5.1-5.9GHz,configurable with China, North American, Europe, etc
Modulation Mode	OFDM 16QAM	OFDM 16QAM
Transmission Power	Maximum 21dBm	-
Receiver Sensitivity	-	(-)75dBm
Occupied Bandwidth	40MHz	40MHz
Temperature Range	0 ~ 40^oC (operating condition) -20~60^oC(Storage)	0 ~ 40^oC (operating condition) -20~60^oC(Storage)
Compliance	FCC; CE.	FCC; CE.
