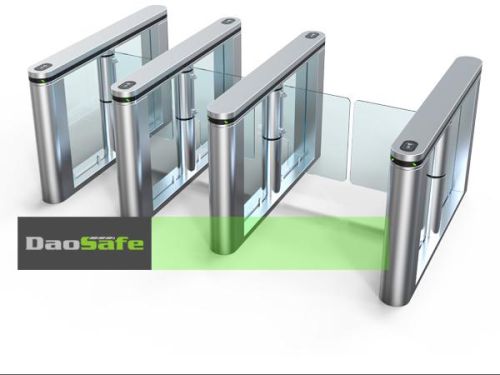

304 Stainless Steel Pedestrian Gates

We are offering 304 stainless steel pedestrian gates ds211
pedestrian gates main functions:
(1) pedestrian gates easy to install, use and maintain.
(2) when power off, the barrier arms will keep open (for safety).
(3) infrared sensor function.
(4) pedestrian gates can be integrated with magnetic card, barcode scanner, counter, swallow machine, token
accepter, and fingerprint machine and so on by standard electrical interface.
304 stainless steel pedestrian gates ds211
pedestrian gates specifications sheet:
item: description:
material: 304 ss, arm- plexiglas
thickness of ply: 1.2mm (standard)
dimensions: (l)1750* (w)200 *(h)990 (mm)
finishing: brushed (standard) fingerprint processing
pass width: 550mm
weight: 50kg60kg
operation direction: single direction bi-direction
power voltage: ac220v +- 10v 50hz
ac110v +- 10v 60hz
work environment: indoor outdoor(with shed)
pass rate: 35 personmin
driving motor: 40w24v
operating temp.: -15℃ ~ 60℃
operating humidity: 0 ~ 95% without concretion
arm openclose time 1s
input interface: 12v level signal or pulse wide>100ms
communication interface: rs485 or rs232, tcpip (distance: ≤10m)
infrared sensor 3 pairs
304 stainless steel pedestrian gates ds211
infrared sensor function:
(1) anti-pinch function:
when people stand in the middle lane, flap arm will not close.
(2) illegal intrusion alarm function:
when people illegal to pass, flap will alarm automatically
(3) reverse intrusion closing function:
when you swiped card if another people pass from the reverse side, flap arm will automatically close.
(4)anti-trailing function:
if someone wants to trail with you without swiped the card, flap arm will be locked automatically.
