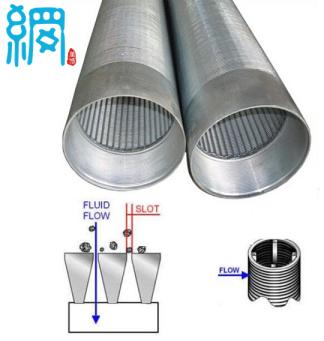

304L Continuous Slot Water Well Screen

Factory SS 304,SS 304L Continuous Slot Water Well Screen

Material: steel wire, stainless steel 304, 304L, 316, 316L.

Specification:

(1). Profile wire (wedge wire) size: 2.2×3.5mm, 2.2×4.5mm, 3.5×4.5mm, 2.5×4.5mm and so on.

(2). Slot size: 0.2-10mm

(3). Support wire size: 2.2×3.5mm, 2.2×4.5mm, 3.5×4.5mm, 2.5×4.5mm and so on.

(4). Pipe screen diameter: 89mm, 152mm, 219mm, 254mm and so on.

(5). Pipe length: can be produced up to 12m.

3.Features:

(1).Cylinder structure,continous gaps provide larger aperture ratio.

(2).Precision gaps dimensions,long service life.

(3).Easy to leakage, difficult to clog, wear-resistance.

4.Application:

Wedge wire screen is widely used for screening, filtering,dehydration,desliming in construction, water treatment, food, petroleum, environmental protection and other industries.
