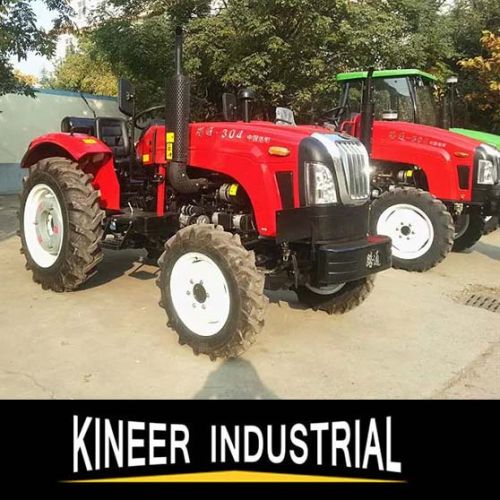

30HP Mini Garden Tractor,30hp Small Farm Tractor

Main Features

1.Chinese (YANG’DONG Brand) famous diesel engine low fuel consumption;

2.9-inch single action clutch &High-pressure lifter,;

3. Gearbox is 4X(2+1) shuttle shift,8 forward gears+ 4 reverse gears;

4. Flexible and stable mesh sleeve shift;

5.Full hydraulic front-wheel steering with independent circuit;

6.Brake system: wet-type, Disc brake, mechanical control;

7.Rear non-independent Power Output, with 6-spline 540/1000 r/min;

8.Planet-gear Final Transmission with small volume and large reduction ratio;

9.Rear three-point linkage, tire (front wheel+rear wheel) is 6.50-16+11.2-24

10.ROPS frame is optional.

Main technical parameters

Model LT304

Type

4x4

Diesel Engine

Diesel model

Chinese Diesel Engine YD4K

Type

Vertical, Inline, water-cooled, 4-stroke, natural aspiration

Engine power/speed

22.1kw & 2200r/min

Cylinder

4No.s

Displacement

2.043 L

Cooling System Type

Pressure type

Fuel Tank Capacity

40L

Weight

Structure mass

1490 kg

Min. using mass

1620 kg

Front counterweight

Max.80 kg

Rear counterweight

Max.80 kg

Parameters (1&2&3&4)

1).Min. turning circle radius

2.8+ 0.3m/ 3.4+0.3m (unilateral/ not unilateral brake)

2).Max. traction force

6.7KN

3).Speed range(Forward/Reverse)

2.07-27.08/3.07-9.35 km/h

Gear

8F+4R

4). Front & Rear Wheel Specification

Front wheel spec.

6.50-16

Rear wheel spec.

11.2-24

Overall Dimensions

Min. Ground clearance

235mm (low-side from trailer device)

Wheelbase

1760mm

Front wheel tread

1200mm

Rear wheel tread

1100-1400mm (1100mm dispatching from factory)

Overall dimension (L*W*H)

3590*1485*1895mm

Note: L till lower-link end ;

H includes exhaust outlet

Height from ground to steering wheel---1535mm

Transmission System

1) Main Clutch

Clutch

Dry-type, single disc, single action

2) Gear Box

Shifting number

4x(2+1)

Gear type

Mesh Sleeve shift

Steering System

Steering type

Hydraulic front wheel steering

Brake System

Brake type

Wet-type, Disc brake, mechanical control

Working System

Type

High-pressure style

Linkage category

Rear three-point linkage

Lifting force

â‰Â§5KN (610mm behind the hanging point)

Type

Rear non-independent type

PTO Speed

540/1000 (6-spline)

Max. Output Shaft Power

18.78 kW

Hydraulic Output

2-group (Optional)

Splitter Type

Built-in Slide Valve

Plowing Depth Control

Force, Position Control

Electrical System

Combined Instruments

Water temperature gauge; fuel gauge; tachometer

Pressure Alarm

QYB001

Electrical Connector

12N

Start-up Switch

MD550.48.101

Flasher

SG158C

Electronic Regulator

JFT149

Start Relay

JD133D

Oil Pressure Alarm

YB18201

Water Temperature Sensor

WDG1371L
