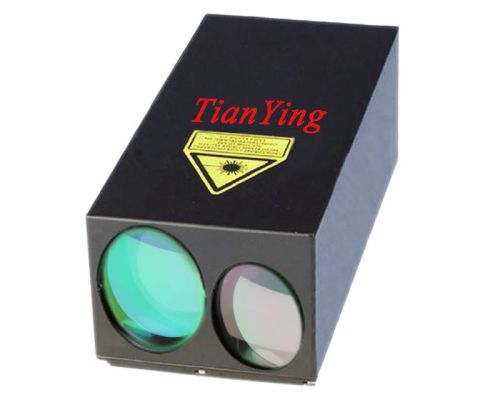

30km 20Hz Miniaturized Diode Pumped Laser Rangefinder Designator Of 1800g Weight

₹ 9.05 Lakh - ₹ 2.72 Cr / pc

Power20 - 28V DC
Laser designator rate(programmable)20Hz work 25 seconds and rest 15 seconds cycle.
Ranging capability≥ 10km for 10m² vehicle in 20km visibility(typical 13km).
Wavelength1064nm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All Countries Except India

Company Information

Ask for more detail from the seller

Report incorrect details

Power20 - 28V DC
Size≤ 1500 cubic centimeters
Continuous designator capability≥ 8km of 10m² vehicle.
MTBF> 10000 hours
ModelTY-LR84
Beam divergence≤ 0.3 mrad
Designator target range displayYes
Measuring rateTypical 5Hz work 5minues and rest ≤ 3minutes cycle
Pulse energy100mJ
Laser TypeCooled + Diode-pumped +Nd:YAG
Laser designator rate(programmable)20Hz work 25 seconds and rest 15 seconds cycle.
Weight≤ 1800g with house
CodeExternally slaved/Internally coded.
Ranging capability≥ 10km for 10m² vehicle in 20km visibility(typical 13km).
Life≥ One Million Range Measurements
Boresight stability≤ 0.05mrad.
Wavelength1064nm
