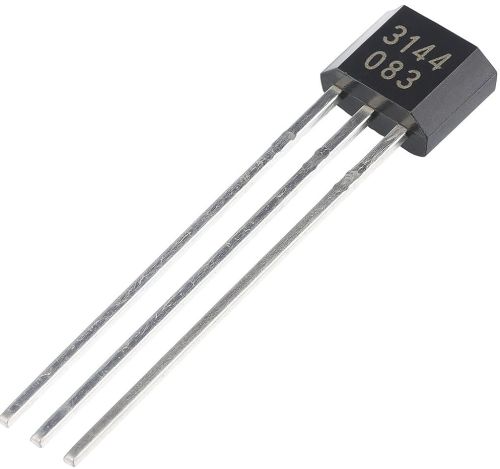

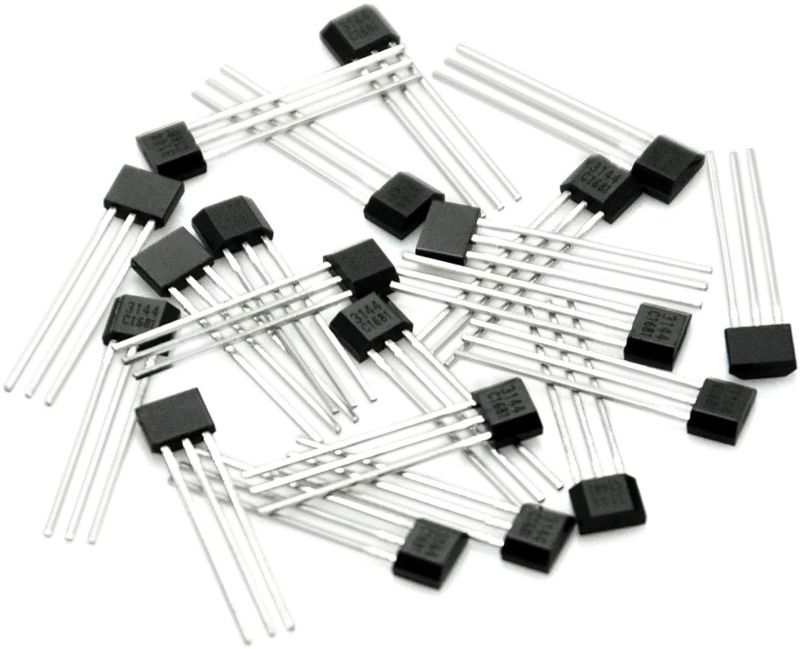

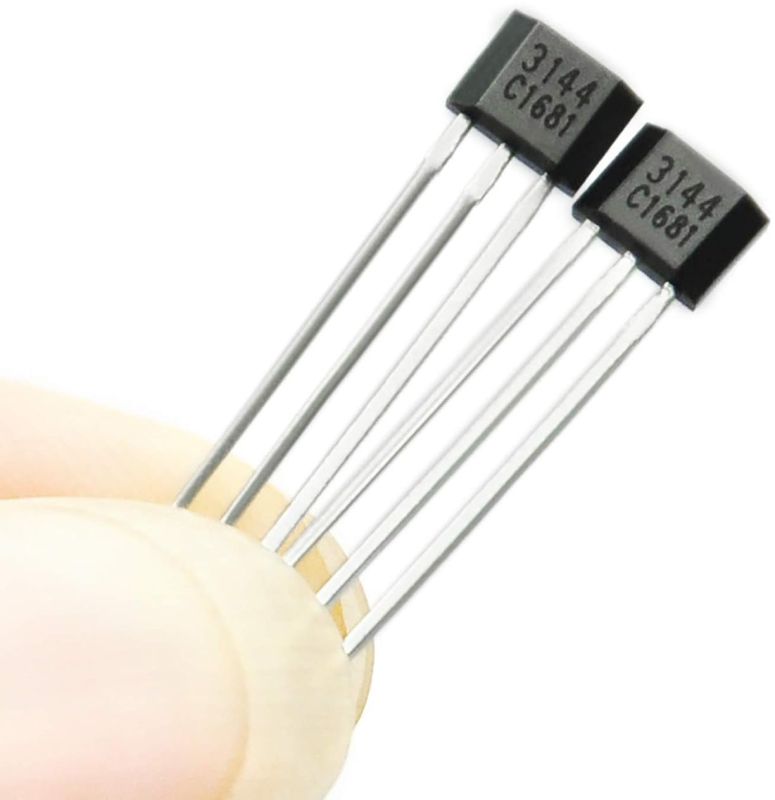

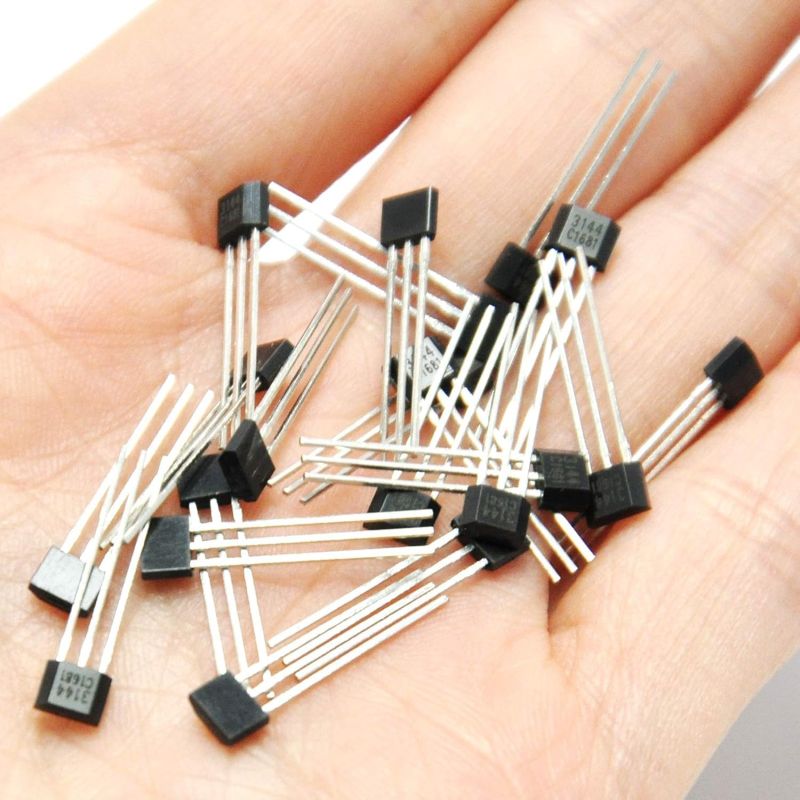

Open-collector (Npn) Output 3144 Hall Effect Sensor Module

₹ 8 / Piece

MOQ10 Piece
MaterialHall Plate Material: Gallium Arsenide (GaAs) or Indium Antimonide (InSb)
Driven TypeOpen-Collector (NPN) Output
Brand NameEmbroidery Parts
ColorBlack
Supply TypeExporter
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

Brand NameEmbroidery Parts
MaterialHall Plate Material: Gallium Arsenide (GaAs) or Indium Antimonide (InSb)
Driven TypeOpen-Collector (NPN) Output
ColorBlack
Automation GradeAutomatic
ApplicationSpeed / RPM Measurement-Proximity & Object Detection-Position Sensing
FeatureUnipolar Hall Effect Switch-Wide Operating Voltage-High Sensitivity
Supply Current4–10 mA (typical 6 mA)
Output Current20–25 mA max
Switching FrequencyUp to 10 kHz
Operating Voltage (Vcc)4.5V to 24V
Output TypeNPN Open-Collector
Output Voltage (Low)< 0.4V at 20mA

1. High Sensitivity Magnetic Sensor – 3144 Hall Effect Sensor detects magnetic fields with high precision, ideal for motor speed, position & proximity sensing.
2. Microcontroller Compatible – Works seamlessly with ESP32, AVR, PIC, and other development boards.
3. Wide Applications – Perfect for robotics, CNC machines, 3D printers, automation projects, motor control & DIY electronics
4. Durable & Reliable – Stable output, long life, and designed for continuous use in electronics & industrial applications.

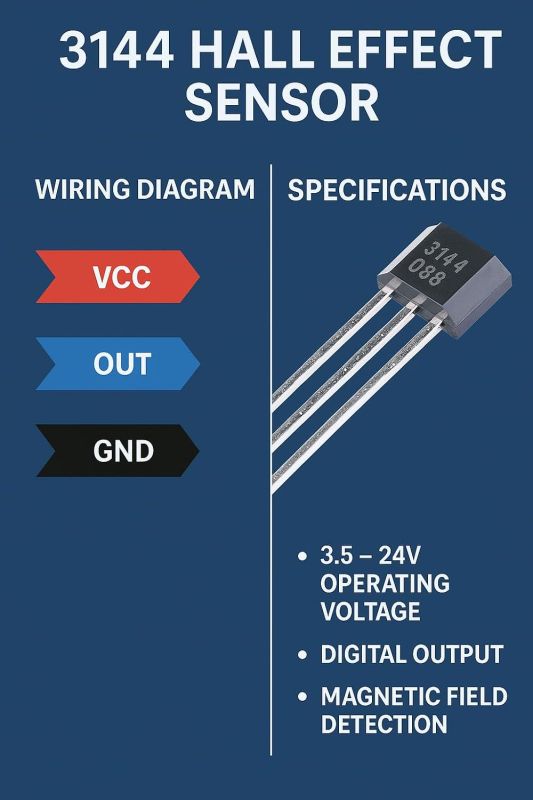

5. Easy to Use – Simple 3-pin interface (VCC, GND, OUT) makes it beginner-friendly for students, makers & professionals.
