Product: Kraft paper, corrugated paper and cardboard paper
Raw material: Pulp, Waste Paper, Straw, Wheat Straw and Bamboo

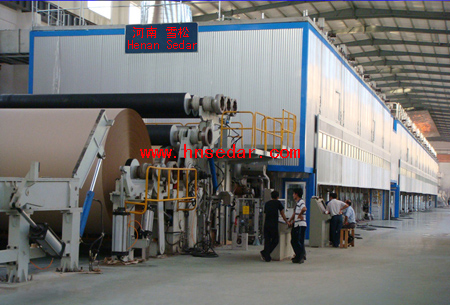

A.The main section of 3200 mm Corrugated Paper Making Machine
Trim Width: 3200 mm
Output Weight: 110-600 g/㎡
Daily Capacity: 45-55 T/D
Transmission speed: 280 m/min
Cycling speed: 400 m/min
Track Gauge: 3400 mm
Transmission mode: AC Frequency, section drive
B. Equipments
Cylinder section:Cylinder mould: 1500mm * 2800mm (stainless steel), Couch Roll: 450mm * 3000mm, back Roll:450mm * 3000, Pneumatic pressure device, Pressure mould former
Press section:Stone Roll: 650mm * 3000mm, Rubber Roll: 600mm * 3000mm, Rubber Roll: 400mm * 3000mm
Dryer section:Dryer: 2500mm * 2950mm, Dryer: 1500mm * 2950mm, Compression roll: 400mm *3000mm, Pneumatic pressure device, Rubber Roll: 600mm * 3000mm
C．Finishing Equipment ：Cutter, Automatic Rewinding machine
