SMD Quartz Crystal Resonator S32 Series
The S32 series is a stable frequency crystal resonator. It is a high-performance surface mount device (SMD) widely used in various electronic applications, particularly where high frequency stability and low power consumption are critical.
The S32 quartz crystal resonator with its superior quality ,reliable perfermance and excellent EMI resistance, ensures optimal solutions for precision timing in various applications.
The output frequency range for the S32 is 8-64MHZ and its size is 3.2x2.5mm. With excellent performance, the S32 crystal oscillator is available for wireless communication, consumer electronics, industrial control, automotive systems, medical devices, and IoT applications.
Product features:
✦High precision and high frequency stability.
✦Extremely good for reducing EMI effect.
✦The best choice of Bluetooth, wireless communication set, DSC, PDA, and mobile phone.
✦RoHS Compliant / Pb Free.
Crystals specifications:
| ITEMS/TYPE | S32 |
| Frequency Range | 8-64MHz |
| Load Capacitance | 8pF,10pF,12pF,16pF,or specify |
| Frequency Tolerance (at 25°℃) | ±10ppm ±20ppm, or specify |
| Frequency Stability Over Operating Temperature Range | ±10ppm ±20ppm, or specify |
| Operating Temperature Range | -40-+85℃, or specify |
| Shunt Capacitance (C0) | 3pF Max. |
| Drive Level | 1-200μW Max. (100μW typical) |
| Aging (at 25℃) | ± 3 ppm/year Max. |
| Storage Temperature Range | -40~+85℃ |

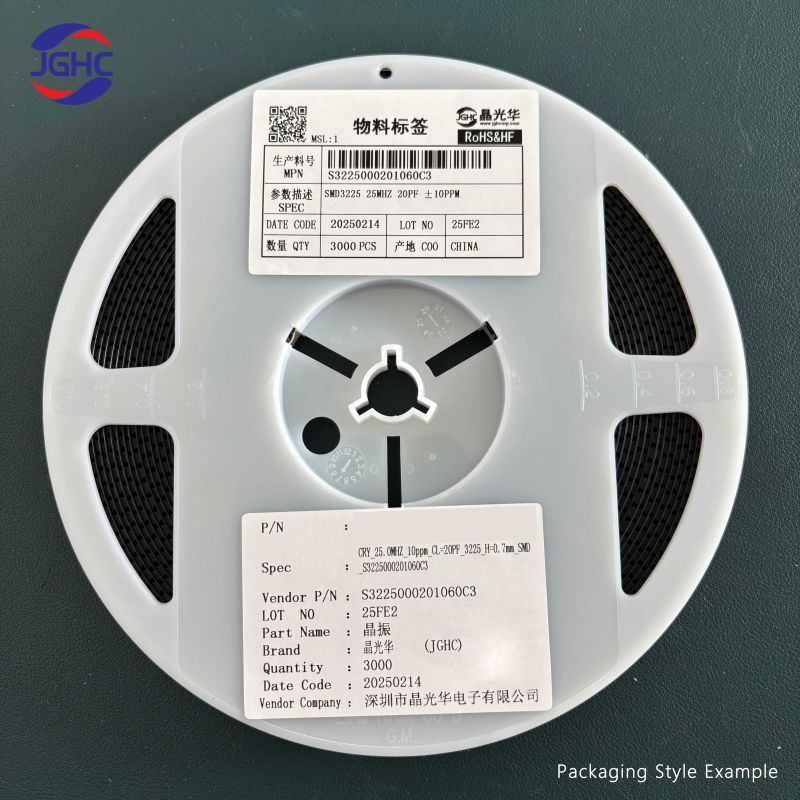

| Packing Unit | 3,000pcs/Reel |
