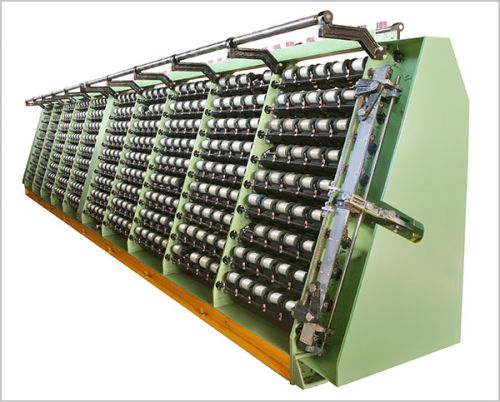

Bobbin winder

Listing ID #3880782

Get Latest Price

Weight3500 Kgs. (Approx)
Adjuster of traverse speedVari Pulley / PIV
Adjustable extent of traverse stroke53-59 mm. / 89-92 mm.
Effective width of bobbin56 mm / 90 mm
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Weight 3500 Kgs. (Approx)
Number of bobbin 360 Nos.
O. D. of bobbin core 22 mm.
Diameter of bobbin flange 55 mm to 72 mm
Effective width of bobbin 56 mm / 90 mm
Adjustable extent of traverse stroke 53-59 mm. / 89-92 mm.
Trim rewinding Device Equipped.
Adjuster of traverse speed Vari Pulley / PIV

winder

yarn is wound on to each bobbin at constant speed regardless of diameter variation. Winding done by surface driven system.
rewind tension is easily adjustable by one knob operation.
press rolls fixed on each bobbin makes even rewind surface.
traverse motion is accurately transmitted through stepless vari-speeder, worm gear unit and cam.
traverse stroke and pitch are easily adjustable by one knob operation.
finished bobbin are quickly and easily removable

Winder: Model No. SMW 360
1	Number of bobbin	360 Nos.
2	Diameter of bobbin flange	55 mm to 72 mm
3	O. D. of bobbin core	22 mm.
4	Effective width of bobbin	56 mm / 90 mm
5	Adjustable extent of traverse stroke	53-59 mm. / 89-92 mm.
6	Adjuster of traverse speed	Vari Pulley / PIV
7	Trim rewinding Device	Equipped.
	Weight	3500 Kgs. (Approx)

Winder: Model No. SMW 432
1	Number of bobbin	432 Nos.
2	Diameter of bobbin flange	55 mm to 72 mm
3	O. D. of bobbin core	22 mm.
4	Effective width of bobbin	56 mm / 90 mm
5	Adjustable extent of traverse stroke	53-59 mm. / 89-92 mm.
6	Adjuster of traverse speed	Vari Pulley / PIV
7	Trim rewinding Device	Equipped.
	Weight	4000 Kgs. (Approx)

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

At SME, research and development have been extensively carried ou,t as the most important programme in its production activity by through investigation into the problem on Micro Slitters. We have developed what we sincerely believe to be the most advanced and efficient mechanism to suit the purpose of producing metallic yarn.
Our micro slitters and winders cover every possible requirement of today's industries where yarn is produced & used.
The "Micro Slitter" is a general name given to both slitter and winder for producing fine yarn 0.15 mm 1 mm wide.
S. M. Engineering is a Company in Surat - Gujarat - India who has Pioneered Manufacturing Micro Slitting Machine. The Only Company that has Mastered the Subject. Micro Slitting. The Company Founded & Established in Year 1957 has a track Record of Producing Precision Machine Tools as well.
