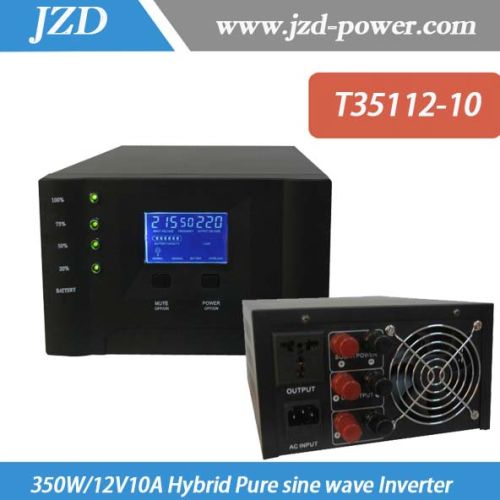

350w Inverters, Brand Name : JZD 385×270×185MM

Technical parameters
model(t-) 35112-10 50112-10 70124-20 10224-20 15224-30 20248-30 30224-50 35248-50
inverter power 350w 500w 700w 1000w 1500w 2000w 3000w 3500w
dc voltage 12v 12v 24v 24v 24v 48v 24v 48v
solar panels' rated current 10a 20a 30a 50a
max. Solar panels' power 120w 480w 720w 1440w 1200w 2400w
size(l*w*h)mm 345×210×122 420×145×215 405×180×320 425×200×335
package size(l*w*h)mm 385×270×185 460×190×260 460×240×380 490×290×410
net weight(kg) 7 8 11 13 17 20 28 31
gross weight(kg) 8 9 12 14 18 21 29 32
technical parameters
model(t-) 40248-50 50296-50 60296-50 70296-50 702192-50 103192-50 153192-100 203192-100
inverter power 4000w 5000w 6000w 7000w 7000w 10000w 15000w 20000w
dc voltage 48v 96v 192v
solar panels' rated current 50a 100a
max. Solar panels' power 2400w 4800w 9600w 19200w
size(l*w*h)mm 465×245×465 485×300×655 600×300×730
package size(l*w*h)mm 530×310×510 570×390×730 670*380*930
net weight(kg) 44 50 52 55 55 85 105 125
gross weight(kg) 46 60 62 65 65 95 115 135
general parameters
inverter structure low frequecny with transformer
working way mains prioritysolar power priority(optional)
input voltage 145vac-275vac
frequency 50hz60hz
output voltage 110vac±2% 220vac±2%
frequency 50hz±0.5hz 60hz±0.5hz
output wave pure sine wave
thd ≤3%
mains input charging current 15a（adjustment）
display way led、lcd
conversion time ≤4ms
cooling way fan
environment noise ≤55db
temperature 0℃～40℃
humidity 10%～90%(no condensation)
efficiency ≥85%
protection overload overload 120%，shut down after 30m;overload 150%，shut down after 10m;when during mains priority,overload not cause shutdown.
short circuit output short circuit, buzzer ringing, 20 seconds after the automatic shutdown
