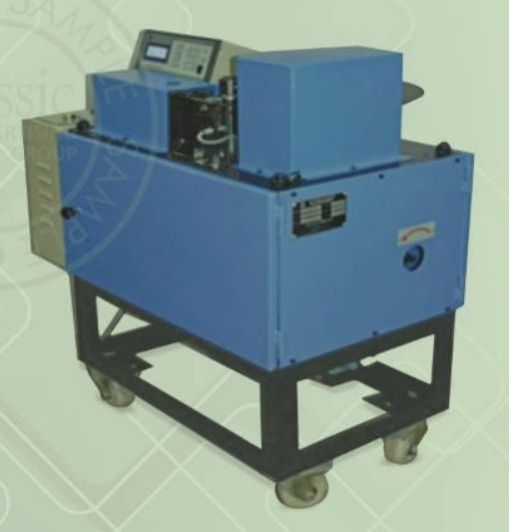

36 & 24 Inch Ceiling Fan Wedge Inserting Machine

Get Latest Price

Sold By : K. D. Dowls & Keys

Send Inquiry

Product Specifications

Slot Indexing motorStepper Motor
Stack height10mm-40mm
Gross Weight280 KG
Motor3 phase, 1/2 HP
Dimension700 x 500 x 750 mm
Stator 0.D diameter120mm to 160mm
Net Weight260 KG
Number of slot8 – 24 Poles
Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

Details

We manufacture and supply extremely cheap and best slot cell or wedge paper inserting machine.
This machine is specially designed for insulation paper of ceiling fan and motor stators.
All procedure actions are done by the machine automatically except to put on and take off stator.
The production cost will be highly reduced by decreasing the material loss and labor cost.
This machine is specially designed for 24” & 36″ with micro controller.

Controllers Features

The complete inserting time for 16 poles stator can be shortned to 6sec/ stator .
High insertion speed is about 0.5 sec/ slot for labor saving, cost reduction, and stable quality output.
Easy adjustment while changing stack height of stator or width of insulating paper.
Change tooling design to meet different shape of stator slots.
