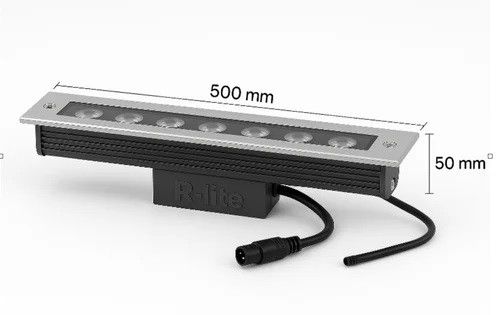

36w Dmx RGB Wall Washer Facade Light

Electrical & Power

• Operating Voltage: DC 24V / AC 100-277V (as per model)

• Power Consumption: 18W / 24W / 36W / 48W / 60W / 72W / 96W / 120W

• Power Factor: > 0.9

• Driver Type: Constant Voltage / External / Isolated

• Control Protocol: DMX512 (Standard)

• Current Draw: Varies with wattage (e.g., 24W = 1A at 24V)

�� Optical Characteristics

• LED Type: High-power RGB LEDs (SMD / 3-in-1 / 4-in-1 options)

• Color Output: RGB (Red, Green, Blue) / RGBW (on request)

• Beam Angle: 10°, 15°, 30°, 45°, 60°, 10x45° (custom optics available)

• Luminous Flux: Approx. 70-90 lm/W (RGB combined)

• Color Mixing: True DMX512 smooth blending

• Control Channels: 3CH (RGB) or 4CH (RGBW)

��️ Mechanical & Construction

• Body Material: Aluminum Extrusion + Tempered Glass

• Finish: Powder-Coated / Anodized (Black / Grey / Silver)

• Length Options: 300mm / 500mm / 600mm / 1000mm / 1200mm

• Mounting Type: Adjustable Bracket / Surface Mount

• Connector: IP65 Waterproof Connectors – DMX IN/OUT, Power IN/OUT

• Ingress Protection: IP65 / IP66 Rated

• Impact Rating: IK07 – IK10 (based on glass type)

• Ambient Temperature: -10°C to +50°C

�� Control & Compatibility

• Control Type: DMX512, RDM compatible

• Addressing Method: Manual DIP Switch / Auto Address / RDM

• Synchronization: Master-Slave / Controller based

• Dimming Capability: 0–100% Smooth Fading

• Optional Control: DMX Decoder + Wireless Controller / Art-Net

⏳ Performance & Life

• LED Life: > 50,000 hours (L70 @ Ta 25°C)

• THD: <10%

• Surge Protection: 2kV / 4kV (as required)

�� Certifications & Compliance

• Standards: CE / RoHS / BIS (if applicable)

• Test Reports: LM-79 / LM-80 (On request)

• Warranty: 2-5 Years (based on configuration)

�� Application Areas

• Building Facade Lighting

• Architectural Illumination

• Landscape Walls

• Monuments / Bridges

• Commercial Building Highlights

• Hotel & Mall Elevation Lighting
