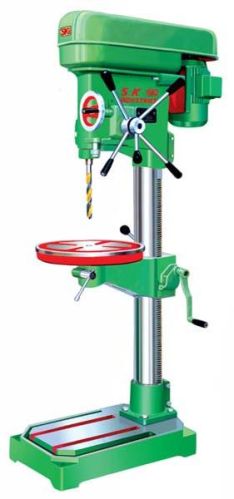

38mm Drill Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

With the due help and assistance of our diligent professionals, we provide you the best in line 38mm Drill Machines having high drilling capacity. We are reckoned Manufacturer & Supplier of Drill....

View More Details

Send Enquiry

Company Information

S.K.INDUSTRIES

Dudheshwar, Ahmedabad, Gujarat

View Number

Member Since 16 Years
Nature of Business Retailer
Year of Establishment 1977

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

With the due help and assistance of our diligent professionals, we provide you the best in line 38mm Drill Machines having high drilling capacity. We are reckoned Manufacturer & Supplier of Drill Machines, based in Gujarat, India. Strong built, durability and seamless quality are few words that better describes our Machines.

Standard Accessories : Pulley for Motor & Switch.

Extra Accessories:

Drill chuck
Motor MT-3
V-belt
Drill vice
Compound sliding table

Features:

Sturdy strealined construction
Main Body (Head) are Boraing on Imported Boring Machine
Hardened & Ground alloy steel Spindle.
Main Gear and Pulley are perfectly Balanced.
Powerful Gear Head driving system capable of drilling, reaming & tapping in all kinds of materials.
Colomns made out of seamless steel tube ground and Hardcrome Plated surface.
Main spindle approx run out is check for accuracy as per IS 2199.
All moving parts are fine finished with grinding.
Easy to operate and maintenance free.

Technical Specification

Drilling Capacity In steel	25.4 mm (32 mm in C.l.)
No. of spindle speed	8 (105 R.P.M. 1100 R.P.M.)
Spindle Nose Taper	Morse Taper No. 3
Spindle center to column	244 mm
Spindle travel	150 mm
Size of table	425 mm Diameter.
Maximum distance between Spindle to table	673 mm
Maximum distance between Spindle to base	1060 mm
Working surface of base	425 mm x 330 mm
Column diameter	115 mm
Base of machine	660 mm x 420 mm
Over all dimension of machine	1778 x 860 x 495
Motor speed	093 KW,055 KW.
Motor 3 phase Induction A.C.	1400 R.P.M./700 R.P.M
Weight of machine (Approx.)	330 kg.
