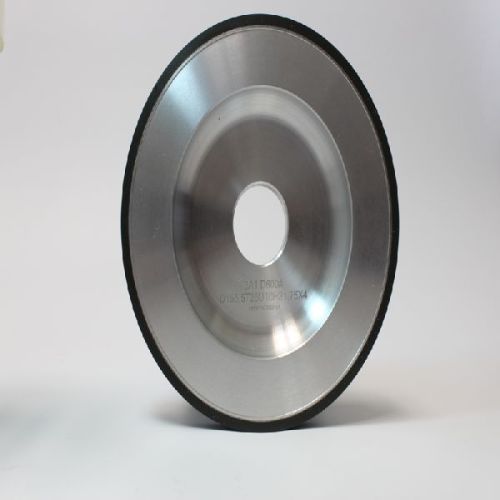

Alisa@moresuperhard.com Electric 3A1 Surface Grinding Wheel

Applications of resin diamond grinding wheel:

Resin bond diamond grinding wheel is mainly used for machining tungsten carbide cutting tools, ceramic ,magnetic materials, silicon ,glass ,quartz and thermal spraying alloy ,etc

Advantages of resin diamond grinding wheel:

* high cutting efficiency,good self-sharpening, less blocking,reducing the grinding burn occurs when the phenomenon of work

* good flexibility will help to improve the surface roughness, mainly used for rough grinding, semi-fine grinding, polishing and other processes

* compared to conventional silicon carbide , resin diamond wheel has good material removal rates, longer wheel life and lower grinding costs

* resin bond diamond wheels generally remove material up to ten times faster than metal bond wheels

Resin diamond wheel products

1：resin cup diamond wheel

2:resin diamond polishing wheel

3: CNC resin diamond grinding wheel

4:resin diamond cutting wheel

5:resin diamond wheel for glass

6:resin centerless grinding wheel

Resin diamond wheel products

1：resin cup diamond wheel

2:resin diamond polishing wheel

3: CNC resin diamond grinding wheel

4:resin diamond cutting wheel

5:resin diamond wheel for glass

6:resin centerless grinding wheel

Production process of Resin bond diamond grinding wheel

1. Mix: the binders and diamond powder are fully stirred and fused in a certain proportion

2. Weighing: weighing according to the volume, ring width and density of the grinding wheel required by the customer

3. Feeding: put mixed diamond powder and binding agent into the grinding tool

4: compression ring (let stand for a period of time to wait for molding)

5: back mould

6: the abrasive layer is air-dried

Cook for 10 hours at 7:670 degrees

8: cooling (prepare the matrix at the same time)

9. Fixed decoration of the whole

10: measure stationarity

7: resin diamond profile wheel
