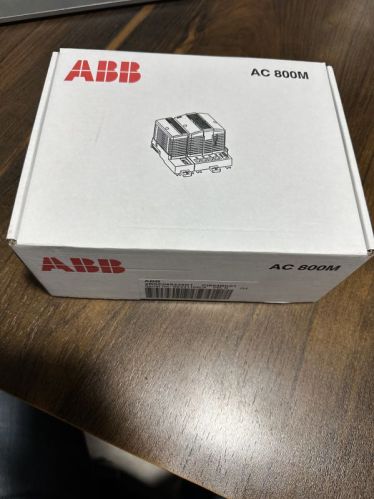

3BSE008516R1 AI810 ABB Analog Output Module

The AI810 Analog Input Module has 8 channels. Each channel can be either a voltage or current input. The current input is able to handle a short circuit to the transmitter supply at least 30 V d.c without damage. Current limiting is performed with a PTC resistor. The input resistance of the current input is 250 ohm, PTC included.

The voltage input is able to withstand an over or undervoltage of at least 30 V d.c. Input resistance is 290k ohm. Transmitter supply can be connected to L1+, L1- and/or L2+, L2-.

• 8 channels for 0...20 mA, 4...20 mA, 0...10 V or 2...10 V d.c., single ended unipolar inputs
• 1 group of 8 channels isolated from ground
• 12 Bit resolution
• Input shunt resistors protected to 30 V by PTC resistor
• Analog inputs are short circuit secured to ZP or +24 V
• The input withstand HART communication.
