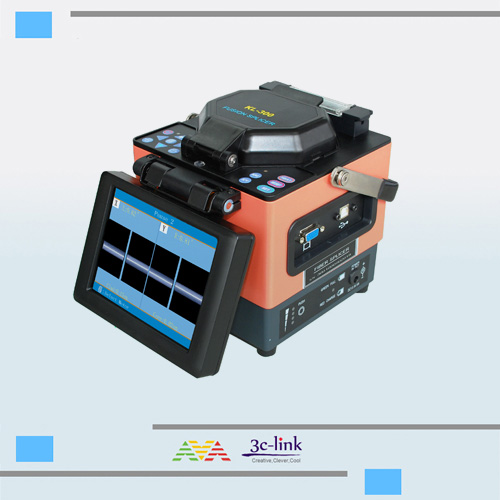

3c-kl-300 Fusion Splicer

A Revolutionary Fusion Splice Machine
features
core to Core Alignment By Pas Technology ( Pas,Profile Alignment System)
Digital Fusion Splicer with Automatic Focus Function
fiber Core Can Be Display Clearly
Single X or Y View and X & Y View Simultaneously
Auto Detect Cleaved Endface Fault
Display Fiber Cleaved and Offset Angle
Display Core and Clad Offset
5.6 Inch Tft Color Lcd Monitor with Clear Digital Image Display
Usb & Vga Interface
Software Upgrade Via Usb Interface
specification
model
3c-kl-300
applicable Fibers
Sm (itu-t G.652), Mm (itu-t G.651), Ds (itu-t G.653), Nzds (itu-t G.655)
fiber Cleaved Length
8~16mm(coating Diameter, 250µm)
16mm(coating Diameter,250 ~ 1000µm)
fiber Diameter
Cladding Diameter,80 ~150µm
Coating Diameter,100~ 1000μm
fiber Count
Single
fiber Aligning Method
Core or Clad Aligning
image Processing Method
Digital
actual Average Splice Loss
0.02db (sm), 0.01db (mm),
0.04db (ds), 0.04db( Nzds)
splicing Time
Typical 9 Sec,With Standard Sm Fiber
splicing Mode
53(templet), 40(user)
splice Loss Estimate
More Accurate
return Loss
More Than 60db
storage of Splice Result
4000 Results,20 Parameter per Result
fiber Display and Magnification
300x(x or Y View),150x(x and Y View)
tube Heating Time
Typical 30 Sec
tube Heating Mode
9(templet), 24(user)
tube Heating Temperature
Can Be Adjusted
applicable Protection Sleeve Length
60mm, 40mm and a Series of Micro Sleeves
tension Test
2n
electrode Life
2500
no.of Splice/heating with Battery
Typical 150 Cycles (splice/tube Heat) with Inner Li-battery
display Screen
5.6 Tft Inch Color Lcd Monitor
image Change Over
the Fiber Image is Turned Upside Down
terminals
Usb 1.1 and Vga
operating Condition
0 ~ 5000m Above Sea Level, 0 ~ 95%rh and -10~50°c, Respectively, Max. Wind Velocity of 15m/s
power Supply
Ac 100-240v with Ac Adapter; Inner Li-battery(6600mah)
dimensions
150mm(l) X150mm (w) X150mm (h)
weight
2.7 Kg Excluding Battery,3.2 Kg Including Battery
